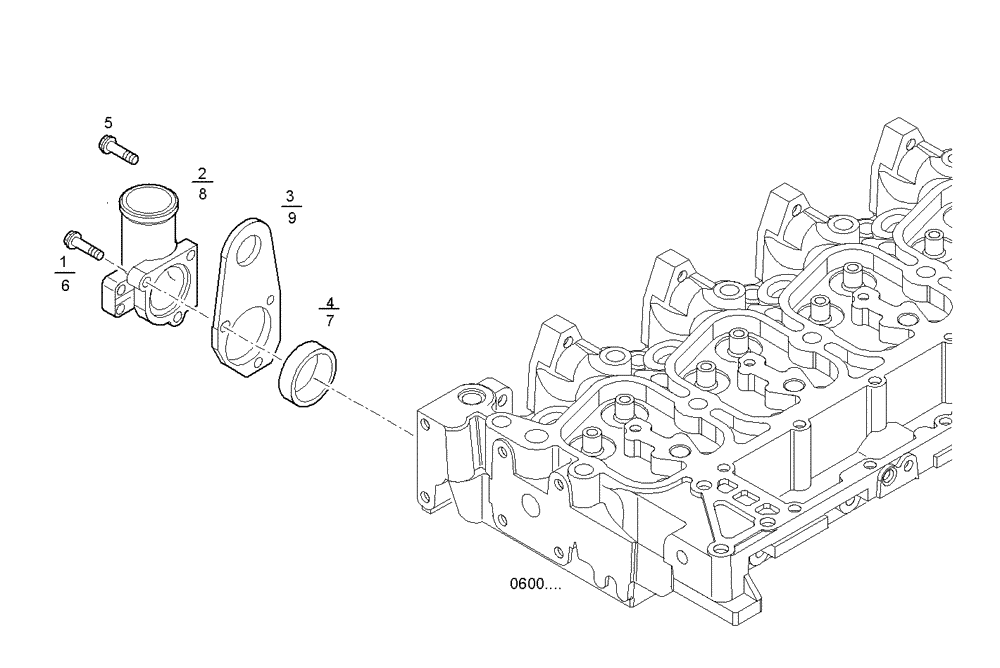

Запчасти Case IH F4GE0684C D600 (3262.013) - TEMPERATURE REGULATOR [UP TO 10-03]

1

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

HEXAGON BOLT, M8X35 MM, 1C 10-03

1шт.

2

4898669

HOUSING

THERMOSTAT BODY, 1C 10-03

1шт.

3

2852242

BRACKET

HOOK, 1C 10-03

1шт.

4

2852154

GASKET,50mm ID x 59.25mm OD x 16.23mm Thk

RUBBER GASKET, 1C 10-03

1шт.

5

4895295

BOLT,Flng, M8 x 1.25 x 70mm, Cl 10.9

HEXAGON BOLT, M8X1,25, 1C 10-03

2шт.

6

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

HEXAGON BOLT, D 10-03

3шт.

7

2853133

GASKET,51.5mm ID x 61.5mm OD x 16.5mm Thk

RUBBER GASKET, D 10-03

1шт.

8

2853131

HOUSING

THERMOSTAT BODY, D 10-03

1шт.

9

504083276

HOOK, D 10-03

HOOK

1шт.
