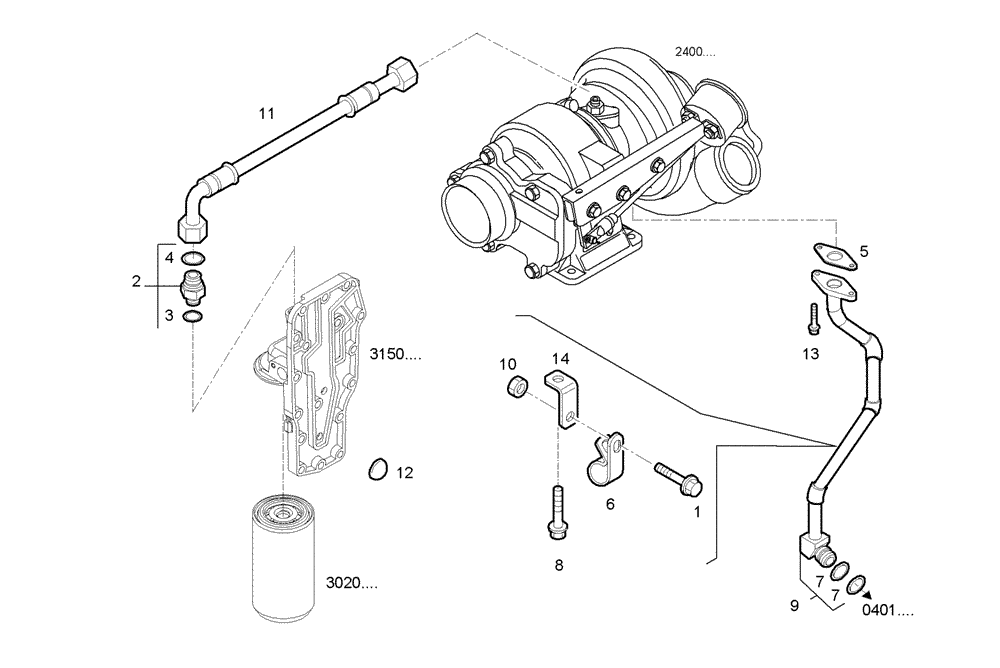

Запчасти Case IH F4GE0684C D600 (3063.022) - TURBOCHARGER OIL LINES

1

16586225

BOLT,M8 x 16mm

HEXAGON BOLT, M8X16 MM

1шт.

2

4895107

HYD CONNECTOR,11/16"-16 x M12

THREADED UNION, ASSY

1шт.

3

4899107

O-RING,1.8mm Thk x 10.52mm ID

O-RING

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

O-RING

1шт.

5

4891288

GASKET,0.8mm Thk

FLAT ENGINE GASKET

1шт.

6

4896893

CLAMP,20mm W

CLIP

1шт.

7

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

O-RING, DIA 17,12 SP 2,62

2шт.

8

16677735

SCREW,M12 x 25mm

HEXAGON BOLT, M12X25 MM

1шт.

9

504019911

RIGID TUBE

OIL LINE

1шт.

10

2852627

FLANGE NUT,Hex, M12 x 1.75

HEXAGON NUT, M12

1шт.

11

2852679

HYDRAULIC HOSE

OIL LINE

1шт.

12

4895089

PLUG,0.886" L

PLUG

1шт.

13

4899031

BOLT,Flng, M8 x 1.25 x 25mm

HEXAGON BOLT, M8X25 MM

2шт.

14

2852390

BRACKET

FASTENING BRACKET

1шт.
