(1400.336) - INJECTION PUMP ASSY

Запчасти Case IH F4GE0684C D600 (1400.336) - INJECTION PUMP ASSY

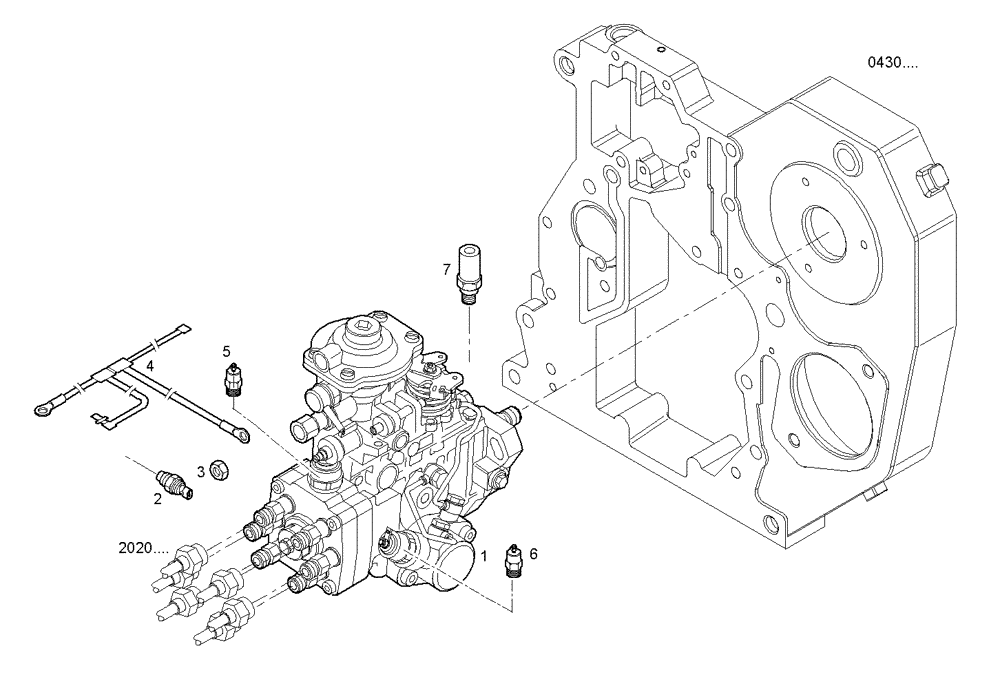

Схема запчастей Case IH F4GE0684C D600 - (1400.336) - INJECTION PUMP ASSY
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2852847

FUEL INJECTION PUMP

DISTRIB.INJ.PUMP

1шт.

2

504032877

TEMPERATURE SENDER

SENSOR, water temperature for KSB

1шт.

3

16979231

NUT

HEXAGON NUT, M5

1шт.

4

2852088

WIRE HARNESS

WIRE/CABLE, for electrovalve & ksb

1шт.

5

42533181

SHUT-OFF VALVE

ELECTROVALVE, 12V

1шт.

6

93192974

SOLENOID VALVE

MAGNETO, KSB

1шт.

7

8094678

THREADED UNION

1шт.
