Запчасти Case IH F4GE0684C D600 (0630.023) - CYL. HEAD COVERS

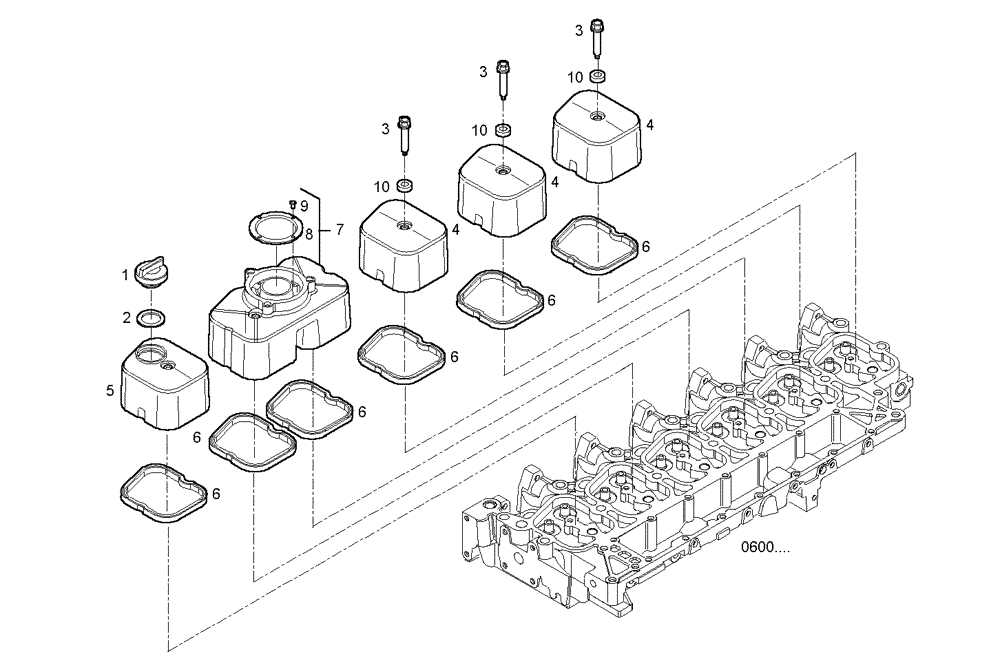

Схема запчастей Case IH F4GE0684C D600 - (0630.023) - CYL. HEAD COVERS

Артикул

Название

Примечание

Количество

1

4895202

FILLER CAP

OIL FILLER PLUG

1шт.

2

4895296

SEALING RING,30mm ID x 48mm OD x 3mm Thk

SEAL GASKET

1шт.

3

4895214

SCREW,Flng, M8 x 1.25 x 34.549mm, Cl 8.8

HEXAGON BOLT, M8X1,25

6шт.

4

2852032

VALVE COVER

CYL. HEAD COVER

3шт.

5

504065039

COVER

CYL. HEAD COVER

1шт.

6

2852033

GASKET,7mm Thk

HEAD COVER GASKET

6шт.

7

2830784

VALVE COVER

CYL. HEAD COVER

1шт.

8

2830775

BAFFLE

CENTERING RING

1шт.

9

2852034

SCREW

SCREW

4шт.

10

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

DOWEL

6шт.

Выбрано товаров: 10
