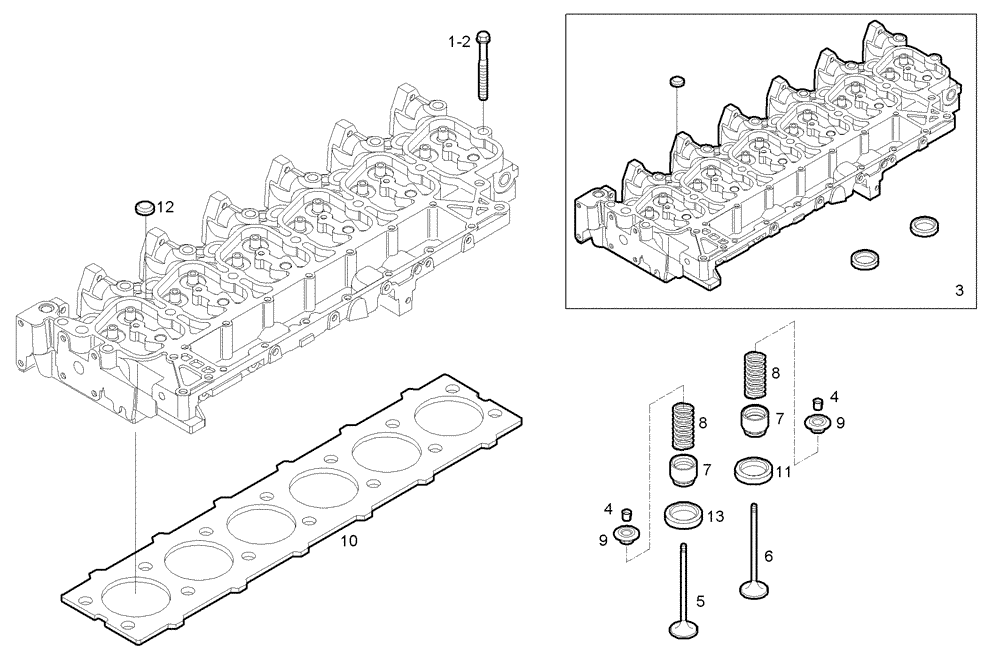

Запчасти Case IH F4GE0684C D600 (0610.014) - CYLINDER HEAD

1

4892861

CAPTIVE WASHER SCREW,Wash Hd, M12 x 1.75 x 73

HEXAGON BOLT, M15X1,75

6шт.

2

4892859

BOLT,Flng, M12 x 1.75 x 143mm

HEXAGON BOLT, M15X1,75

14шт.

3

4895766

CYLINDER HEAD

CYLINDER HEAD, ASSY

1шт.

4

4895183

COLLET

VALVE CONE

24шт.

5

4899632

STD EXHAUST VALVE

EXHAUST VALVE

6шт.

6

4895187

STD INLET VALVE

INLET VALVE

6шт.

7

4895347

SEAL

CAP

12шт.

8

4895215

VALVE SPRING,Compression, 32.8mm OD x 63.5 mmL

ENGINE VALV.SPRING

12шт.

9

4895184

RETAINER,34mm OD, 10.63mm ID, 14.5mm L

SPRING CAP

12шт.

10

2830922

CYLINDER HEAD GASKET,1.4mm Thk

CYL.HEAD GASKET, SP=1,25 MM

1шт.

11

4897179

VALVE SEAT,38 mmID x 47mm OD x 6.9mm L

VALVE SEAT STD., EXHAUST

6шт.

12

4895179

EXPANSION PLUG,M20.93

LOCK PLUG

5шт.

13

4897178

VALVE SEAT,36mm ID x 43mm OD x 6.7mm L

VALVE SEAT STD., INTAKE

6шт.
