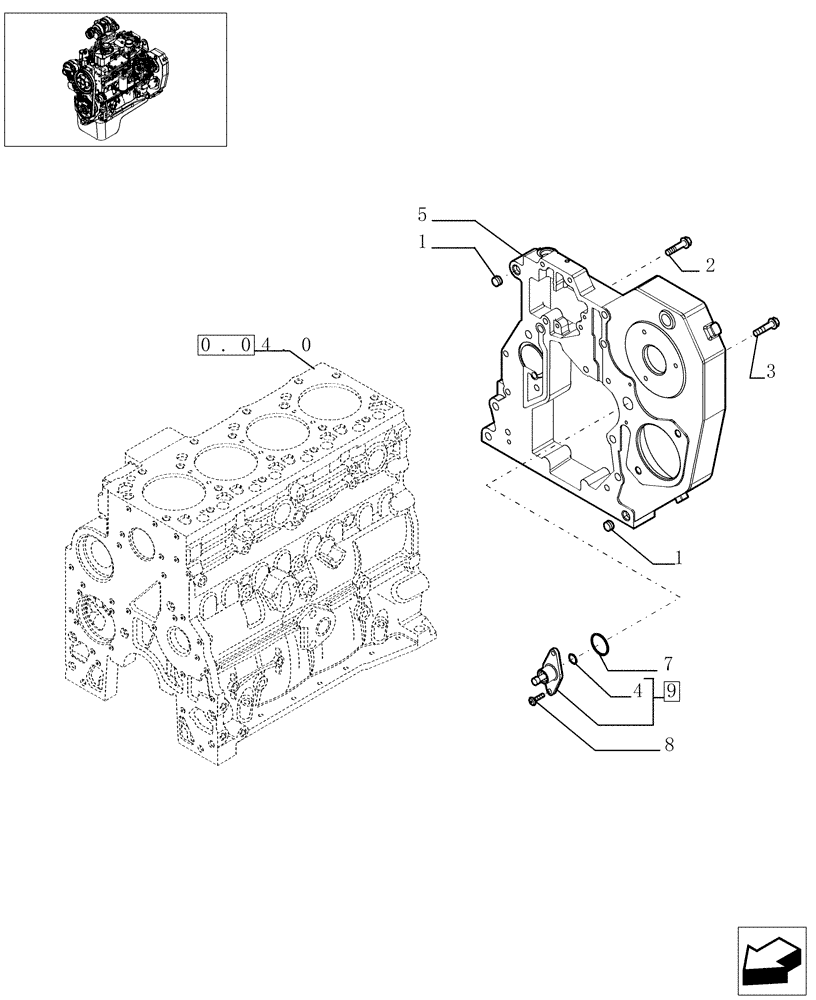

Запчасти Case IH F4GE0484C D601 (0.04.3[01]) - CRANKCASE COVERS (504035016)

1

4899026

DOWEL,M18 x 10

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

4шт.

3

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

5шт.

3

4899073

SCREW,Hex Flg, M12 x 1.75 x 30

1шт.

4

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

5

2852320

COVER

1шт.

7

4895357

SEALING RING

SEALRING

1шт.

8

4895355

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

9

4895356

COVER

- ASSY

1шт.
