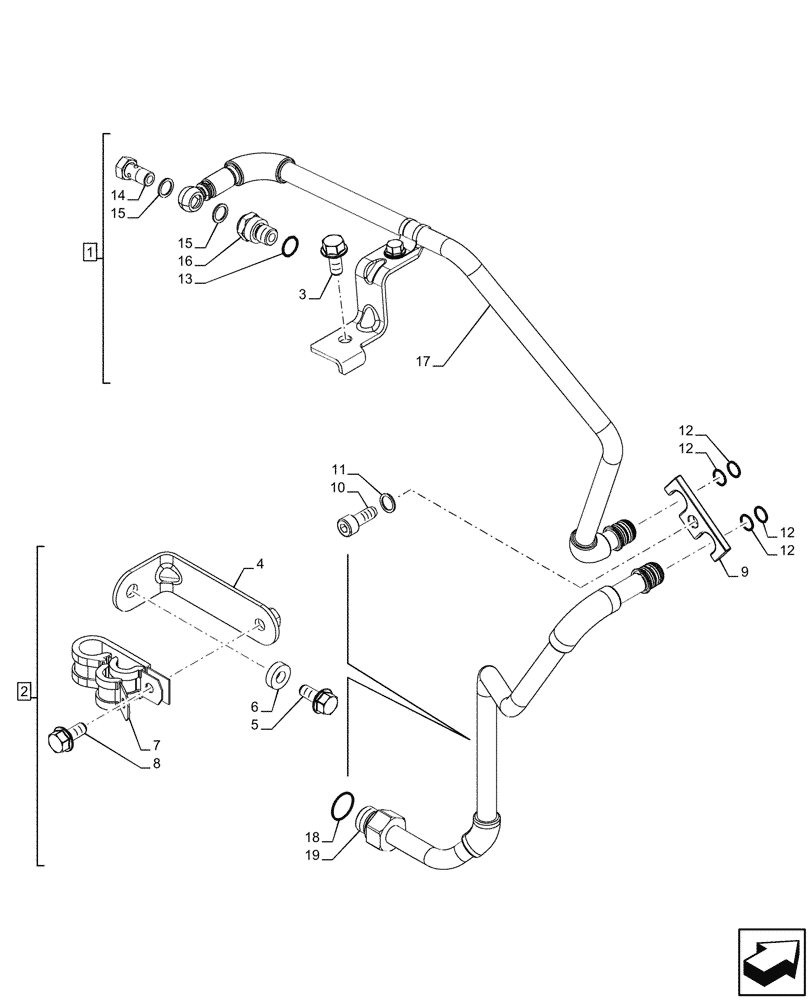

Запчасти Case IH F4DFE617M B001 (10.254.AZ[02]) - ENGINE EXHAUST BRAKE, PIPE, WATER SUPPLY (10) - ENGINE

1

5801958227

PIPE

ASSY, Incl 3, 12 - 17

1шт.

2

5801958229

PIPE

ASSY, Incl 12, 18, 19

1шт.

3

16586224

SCREW,Hex Flg, M8 x 1.25 x 16mm, Cl 8.8

1шт.

4

5801958232

BRACKET

1шт.

5

16600224

SCREW,Hex, M8 x 1.25 x 18mm

1шт.

6

17816014

BAR

1шт.

7

5801958231

BRACKET

1шт.

8

16978125

BOLT

1шт.

9

5801623880

BRACKET

1шт.

10

16690525

SCREW,M8 x 1.25 x 17mm

1шт.

11

17800474

WASHER

1шт.

12

17278181

O-RING

4шт.

13

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

14

16511114

BANJO BOLT

1шт.

15

NSS

NOT SOLD SEPARAT

Gasket, Incl in 1

2шт.

16

NSS

NOT SOLD SEPARAT

Joint, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Water delivery pipe, Incl in 1

1шт.

18

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

19

NSS

NOT SOLD SEPARAT

Water delivery and return pipe, Incl in 1

1шт.
