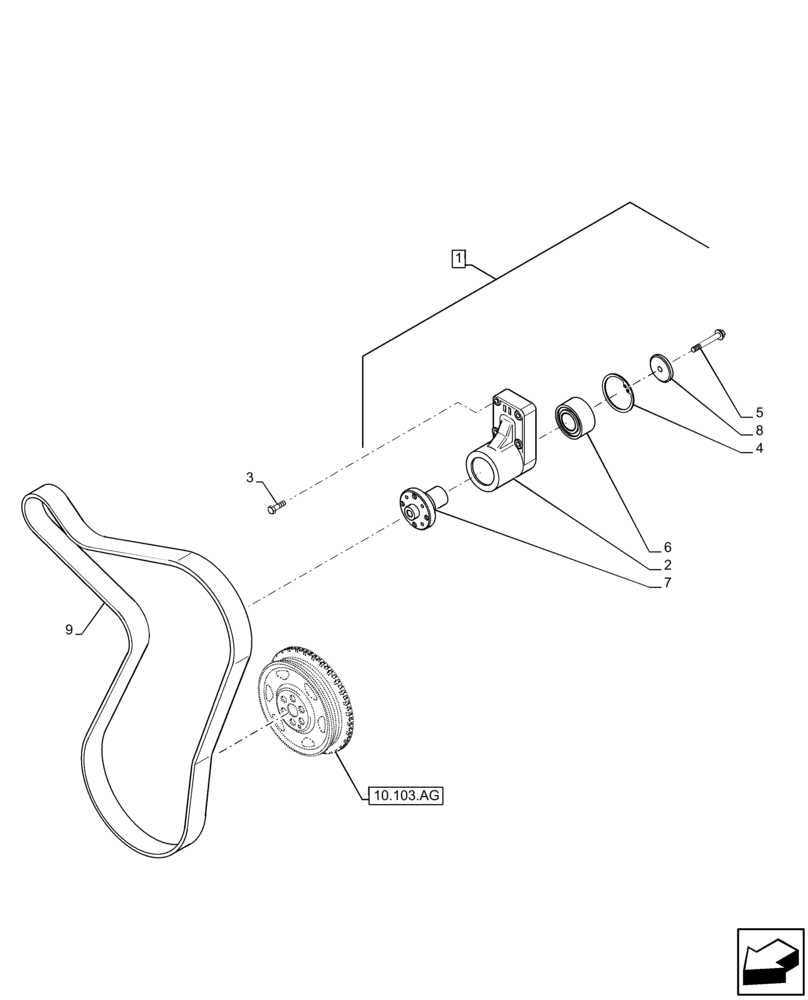

Запчасти Case IH F4DFE617M B001 (10.414.AC) - FAN DRIVE (10) - ENGINE

1

5801940042

SUPPORT

Fan, ASSY, Incl 2, 4 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

3

4899053

SCREW,Hex Flg, M8 x 45

4шт.

3

4895608

SCREW

2шт.

4

500395697

SNAP RING,M68.2, Int

1шт.

5

87698841

BOLT,Hex, M10 x 70mm, Cl 10.9

1шт.

6

47599112

BALL BEARING

1шт.

7

4892426

HUB

1шт.

8

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

1шт.

9

47978216

BELT

1шт.
