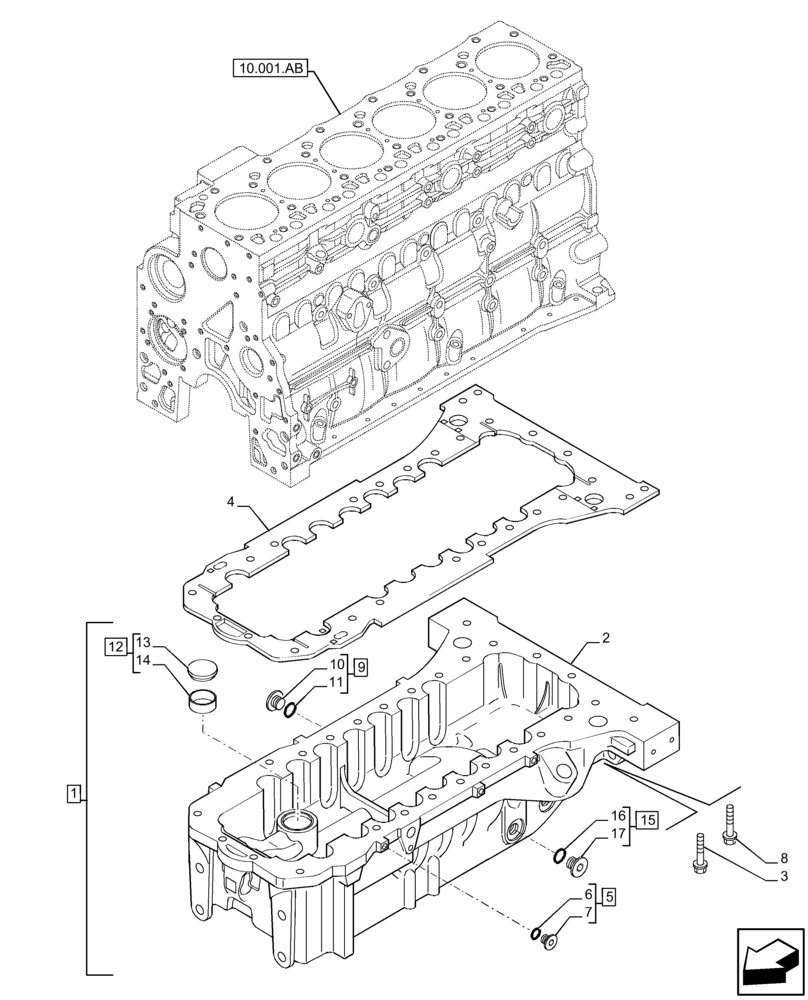

Запчасти Case IH F4DFE617M B001 (10.102.AP) - ENGINE OIL SUMP (10) - ENGINE

1

5801882457

PAN

ASSY, Incl 2, 3, 5, 8, 9, 12, 15

1шт.

2

NSS

NOT SOLD SEPARAT

Engine Oil Sump, Incl in 1

1шт.

3

4892744

SCREW,Hex Flg, M10 x 1.5 x 165, 10.9

4шт.

3

4895743

BOLT

HH, Flange, M10 x 1.5 x 70

12шт.

3

4892753

SCREW,7/16" - 18

12шт.

4

4894301

OIL PAN GASKET SET

1шт.

5

10305111

PLUG,M22 x 1.5 x 21, Cl5.8

ASSY, Plug, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Plug, Incl in 5

2шт.

7

99489020

FITTING

1шт.

7

99489022

GASKET,22mm ID x 30mm OD x 1.50mm Thk

1шт.

8

84263397

FLANGE BOLT,Hex, M10 x 200mm, Cl 8.8

2шт.

9

4895392

HEX SOCKET PLUG,M18 x 1.5

ASSY, Incl 10, 11

1шт.

9

4894139

PLUG,Hex Soc, M22 x 1.5

3шт.

10

4895394

HEX SOCKET PLUG,M18 x 1.5

1шт.

11

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

11

2853728

O-RING,M23.47 ID x 2.62 Thk

3шт.

12

4895936

PLUG

Plug, Incl 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl in 12

1шт.

14

4895935

FILTER SCREEN

Collar

1шт.

15

4895623

HEX SOCKET PLUG,M16 x 1.5

ASSY, Plug, Incl 16, 17

1шт.

16

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

17

NSS

NOT SOLD SEPARAT

Plug, Incl in 15

1шт.
