(10.102.AK) - CRANKCASE, COVER

Запчасти Case IH F4DFE617M B001 (10.102.AK) - CRANKCASE, COVER (10) - ENGINE

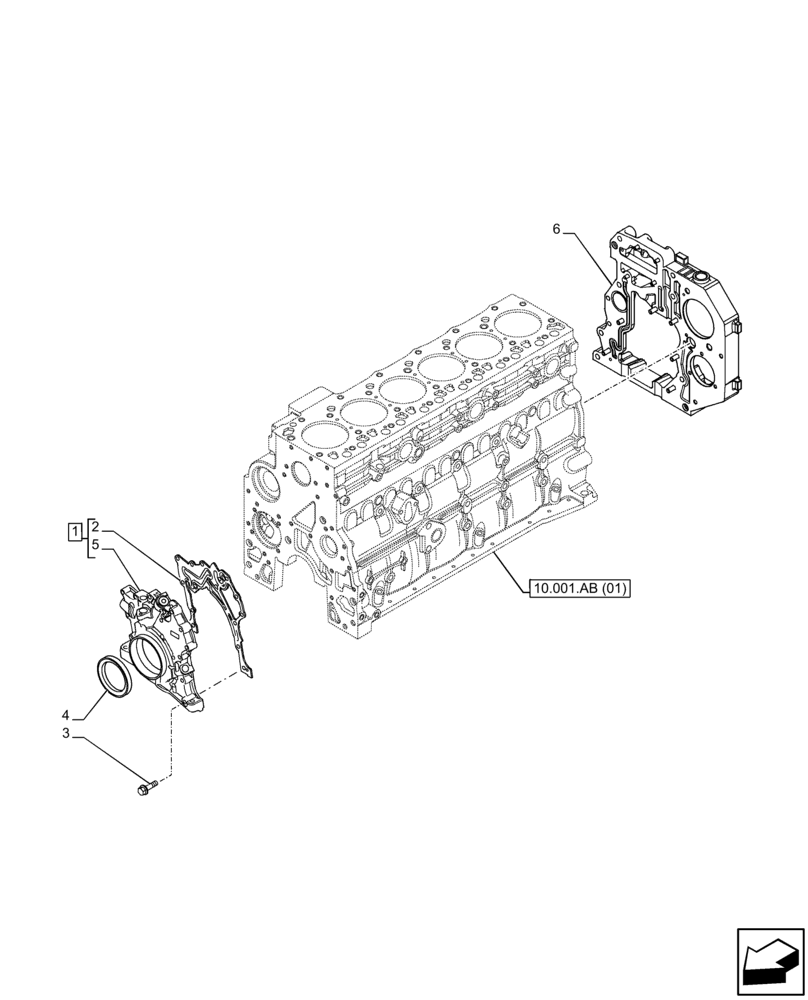

Схема запчастей Case IH F4DFE617M B001 - (10.102.AK) - CRANKCASE, COVER (10) - ENGINE
10.001.ab
2
4
1
5
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2830972

GASKET,2.3mm Thk

ASSY, Crankcase, Cover, Front, Incl 2, 5

1шт.

2

NSS

NOT SOLD SEPARAT

Gasket, Incl in 1

1шт.

3

4899063

SCREW,Hex Flg, M8 x 1.25 x 30

3шт.

4

84575644

OIL SEAL,70mm ID x 100mm OD x 16mm Thk

1шт.

5

NSS

NOT SOLD SEPARAT

Cover, Front, Incl in 1

2шт.

6

NS

NOT SERVICED

Housing, Rear

2шт.
