(55.013.AD) - ENGINE OIL PRESSURE AND TEMPERATURE SENSOR

Запчасти Case IH F4DFE617L B002 (55.013.AD) - ENGINE OIL PRESSURE AND TEMPERATURE SENSOR (55) - ELECTRICAL SYSTEMS

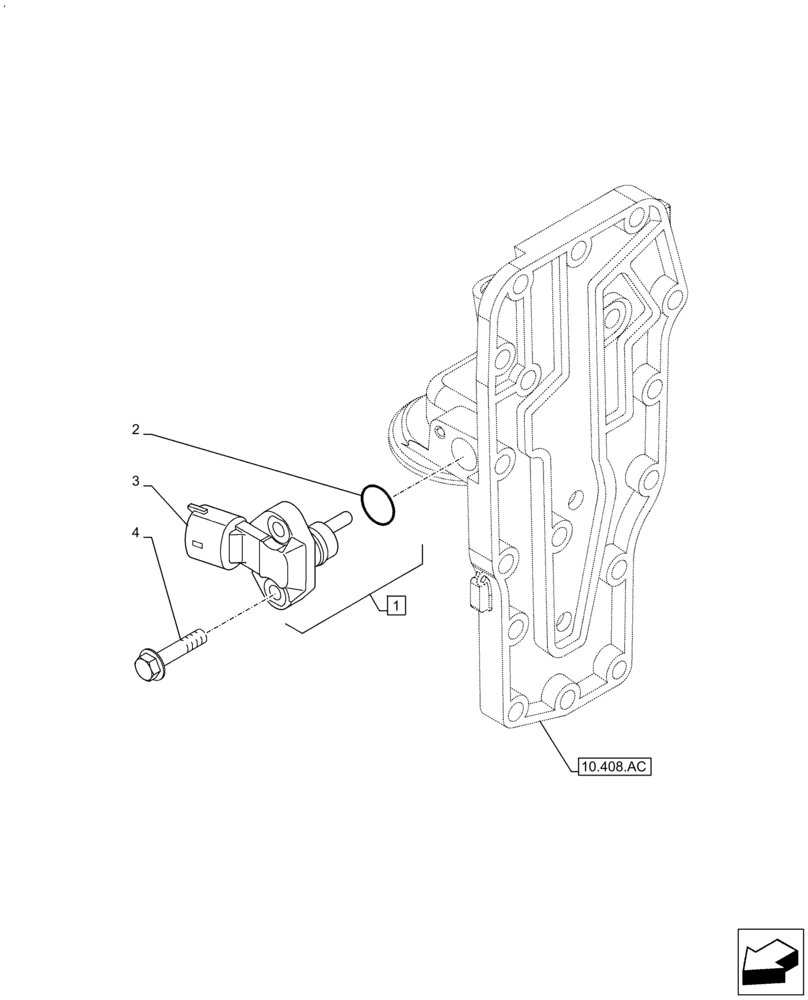

Схема запчастей Case IH F4DFE617L B002 - (55.013.AD) - ENGINE OIL PRESSURE AND TEMPERATURE SENSOR (55) - ELECTRICAL SYSTEMS
10.408.ao
4
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2859674

SENSOR,Oil Pressure

ASSY, Incl 2,3

1шт.

2

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

3

2859675

SENSOR,Oil Temperature

1шт.

4

4895817

BOLT,Flng, M6 x 1 x 20mm, Cl 10.9

2шт.
