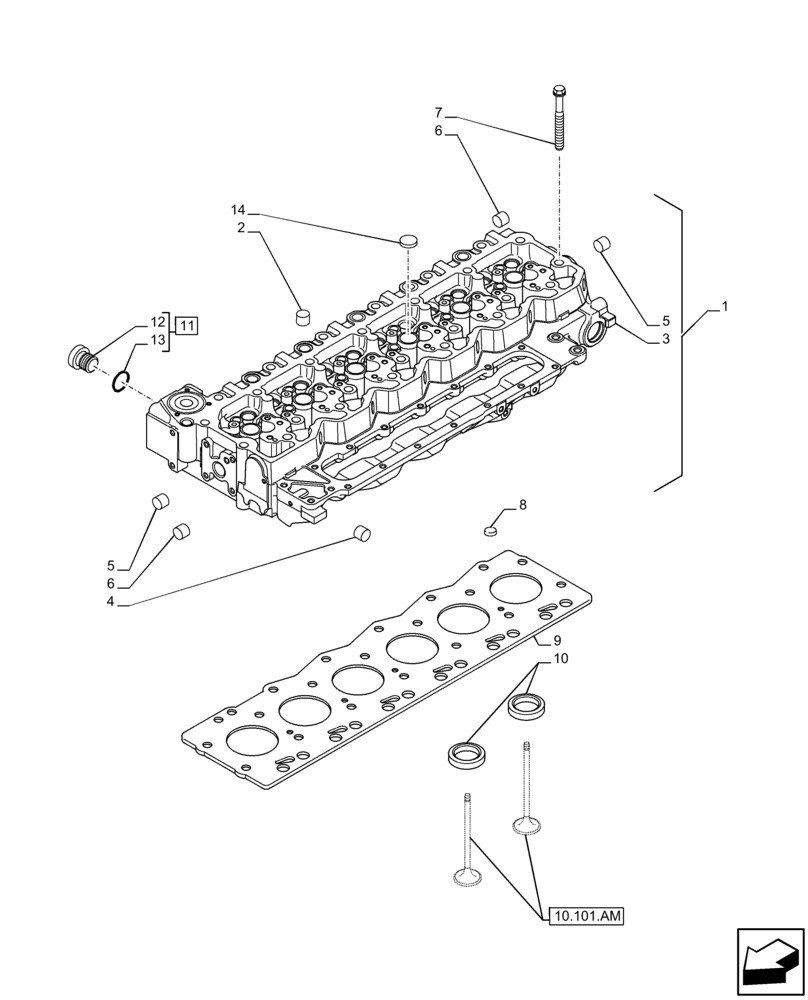

Запчасти Case IH F4DFE617L B002 (10.101.AA) - CYLINDER HEAD (10) - ENGINE

1

2831274

CYLINDER HEAD,6 Cylinders

ASSY, Incl 2 - 6

1шт.

2

4895078

PIPE PLUG,1/2"-14

4шт.

3

2831278

CYLINDER HEAD,6 Cylinders

1шт.

4

4895407

EXPANSION PLUG,38.28mm OD

2шт.

4

98405182

DOWEL

2шт.

5

4895085

EXPANSION PLUG,25.74mm

13шт.

5

2854491

PLUG,Taper Pipe, Hex, 1/4" - 18 x 14.224mm

1шт.

6

4895406

EXPANSION PLUG,9.8mm OD

7шт.

7

4891025

SCREW,Flng, M12 x 1.75 x 150mm

14шт.

8

4893036

PIPE PLUG,3/4"-14 NPTF

3шт.

9

47536485

CYLINDER HEAD GASKET,1.15mm Thk

1шт.

9

47536495

CYLINDER HEAD GASKET,1.25mm Thk

1шт.

10

4897578

VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L

12шт.

10

4897106

VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L

12шт.

11

4895080

HEX SOCKET PLUG,M22 x 1.5

ASSY, Incl 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Plug, Incl in 11

1шт.

13

4895082

O-RING,19.3mm ID x 2.2mm Width

1шт.

14

4895089

PLUG,0.886" L

1шт.
