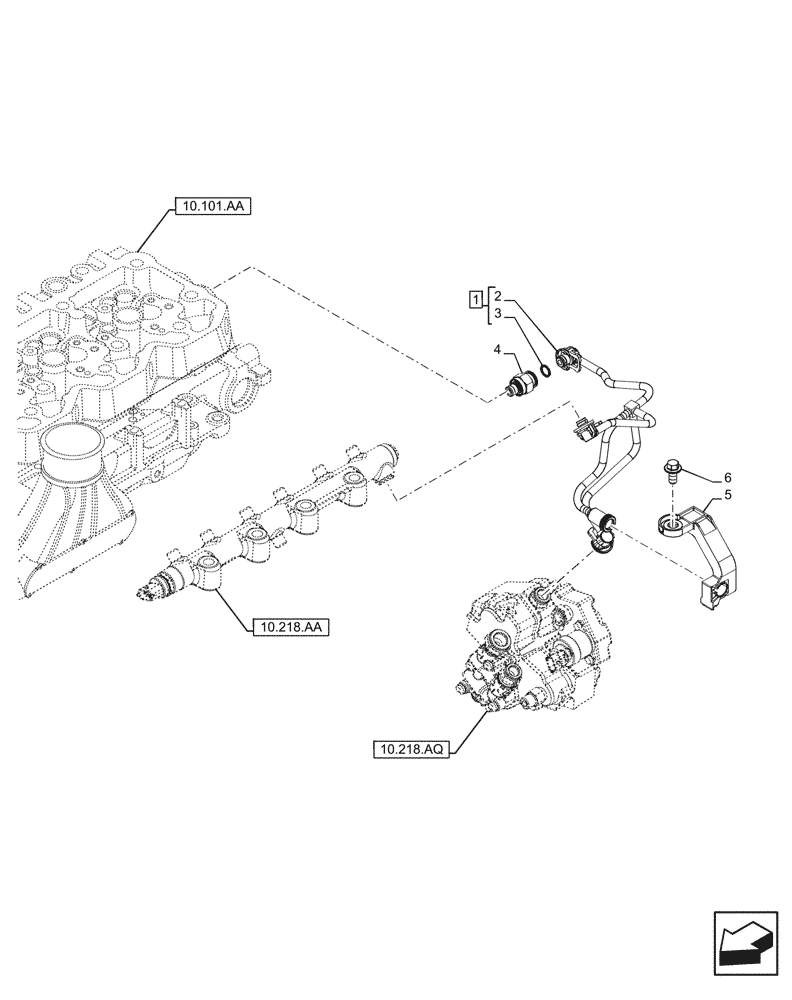

Запчасти Case IH F4DFE613N B006 (10.218.AI) - FUEL LINE, PIPE (10) - ENGINE

1

504361292

RETURN PIPE

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Fuel drain tube, Incl in 1

1шт.

3

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

4шт.

4

504388946

FITTING

1шт.

5

504361295

BRACKET,BRACKET SUPPORTING

1шт.

6

16587924

SCREW,Hex Flg, M12 x 25mm, Cl 8.8

1шт.
