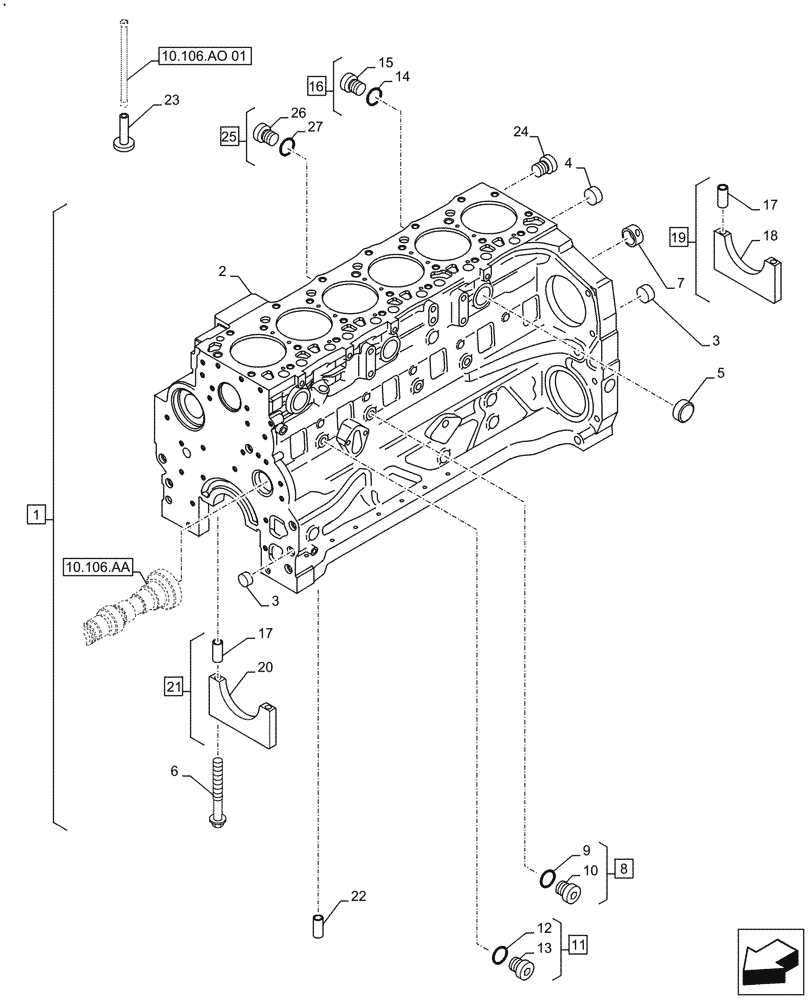

Запчасти Case IH F4DFE613N B006 (10.001.AB) - CRANKCASE (10) - ENGINE

1

5801595376

ASSY, Incl 2-7, 17-21, 24

CYLINDER BLOCK,BLOCK ASSY CYLINDER S

1шт.

2

NSS

NOT SOLD SEPARAT

Crankcase, Incl in 1

1шт.

3

4895039

EXPANSION PLUG,M17.73

2шт.

4

4895038

EXPANSION PLUG,M58.06

6шт.

5

4895228

EXPANSION PLUG,35.23mm x 7.94mm

3шт.

6

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

M12 x 1.5 x 120

14шт.

7

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

1шт.

8

4895605

HEX SOCKET PLUG,M14 x 1.5

ASSY, Incl 9,10

2шт.

9

4899115

O-RING,2.2mm Thk x 11.3mm ID

1шт.

10

4895606

PLUG,M14 x 1.5 x 18mm L

1шт.

11

4899009

PLUG,M10 x1

ASSY, Incl 12, 13

3шт.

12

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

13

4895041

PLUG,M10 x 1 x 13.5mm L

1шт.

14

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

15

4895394

HEX SOCKET PLUG,M18 x 1.5

1шт.

16

4895392

HEX SOCKET PLUG,M18 x 1.5

ASSY, Incl 14, 15

2шт.

17

4899026

DOWEL,M18 x 10

4шт.

18

4892951

BEARING CAP,24.5 mm

1шт.

19

4895919

BEARING ASSY,86.1mm D

ASSY, Incl 17, 18

1шт.

20

4892952

BEARING CAP,27.5 mm

2шт.

21

4895921

BEARING ASSY,86.1mm D

6шт.

22

4895049

DOWEL,M16.05 x 10

2шт.

23

4899803

TAPPET

12шт.

24

NS

NOT SERVICED

Plug

1шт.

25

NS

NOT SERVICED

Plug, ASSY, Incl 26, 27

1шт.

26

NSS

NOT SOLD SEPARAT

Plug, Incl in 25

1шт.

27

NSS

NOT SOLD SEPARAT

O-ring, Incl in 25

1шт.
