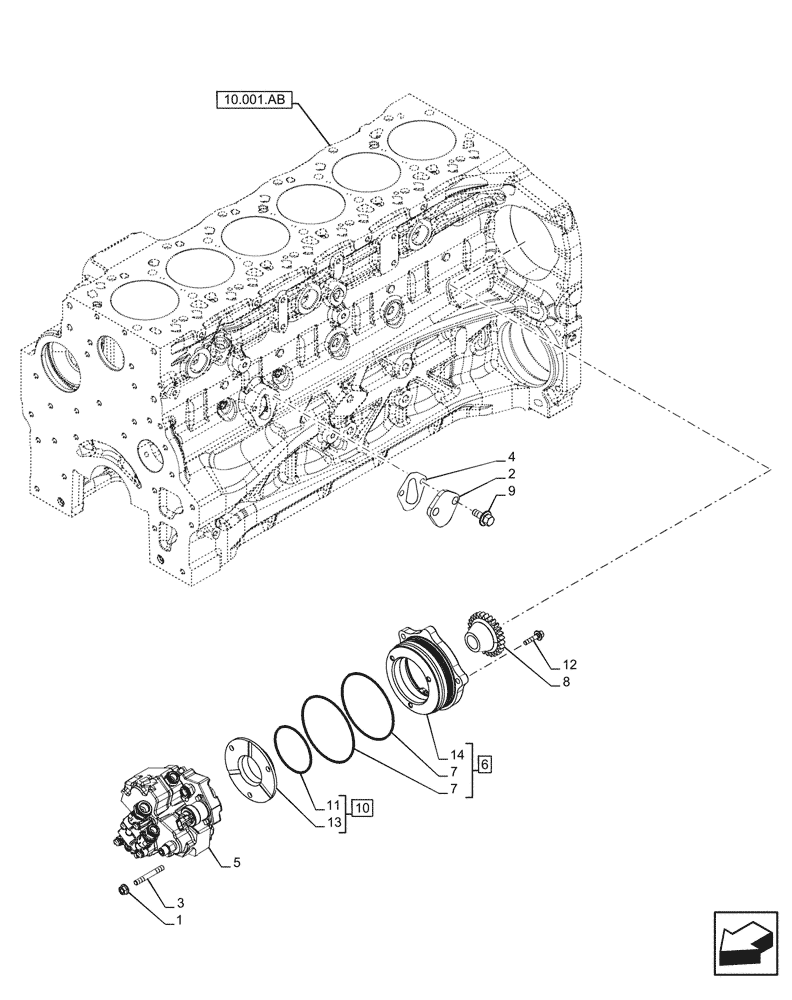

Запчасти Case IH F4DFE613K B006 (10.218.AQ[01]) - FUEL INJECTION PUMP (10) - ENGINE

1

17044735

NUT,Hex, M8

3шт.

2

4896952

COVER

1шт.

3

4892831

STUD

3шт.

4

4890700

GASKET,1.21mm Thk

1шт.

5

5801633945

FUEL PUMP

1шт.

6

2830598

BEARING COVER

ASSY, Incl 7, 14

1шт.

7

17292081

GASKET

2шт.

8

4896138

DRIVEN GEAR,27T

1шт.

9

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

2шт.

10

2830564

SPACER

ASSY, Incl 11, 13

1шт.

11

17290581

O-RING,72.62mm ID x 2.34mm Width

1шт.

12

4899063

SCREW,Hex Flg, M8 x 1.25 x 30

3шт.

13

NSS

NOT SOLD SEPARAT

Spacer, Incl in 10

1шт.

14

NSS

NOT SOLD SEPARAT

Cover, Incl in 6

1шт.
