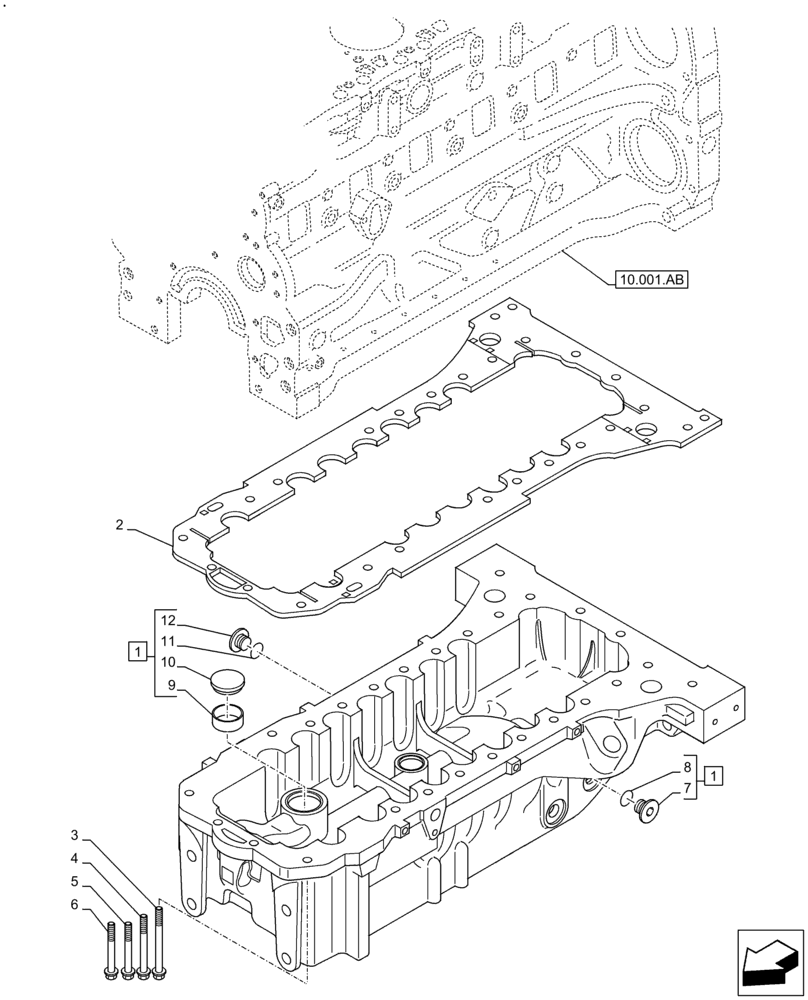

Запчасти Case IH F4DFE613J B006 (10.102.AP) - ENGINE OIL PAN (10) - ENGINE

1

2855274

ENGINE OIL PAN

ASSY; Incl 7-12

1шт.

2

4894301

OIL PAN GASKET SET

1шт.

3

4895339

SCREW,Hex Flange Head Cap, M8 x 20

2шт.

4

4892753

SCREW,7/16" - 18

22шт.

5

2855278

SCREW,Hex Washer Head, M10 x 1.5 x 150mm L

6шт.

6

4892742

BOLT,Flng, M10 x 1.5 x 190mm, Cl 10.9

4шт.

7

NSS

NOT SOLD SEPARAT

Plug; Incl in 1

1шт.

8

4893207

SEALING WASHER,15.5mm ID x 26mm OD x 1.5mm Thk

1шт.

9

NSS

NOT SOLD SEPARAT

Filter screen; Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Plug; Incl in 1

1шт.

11

2853728

O-RING,M23.47 ID x 2.62 Thk

2шт.

12

4894139

PLUG,Hex Soc, M22 x 1.5

2шт.
