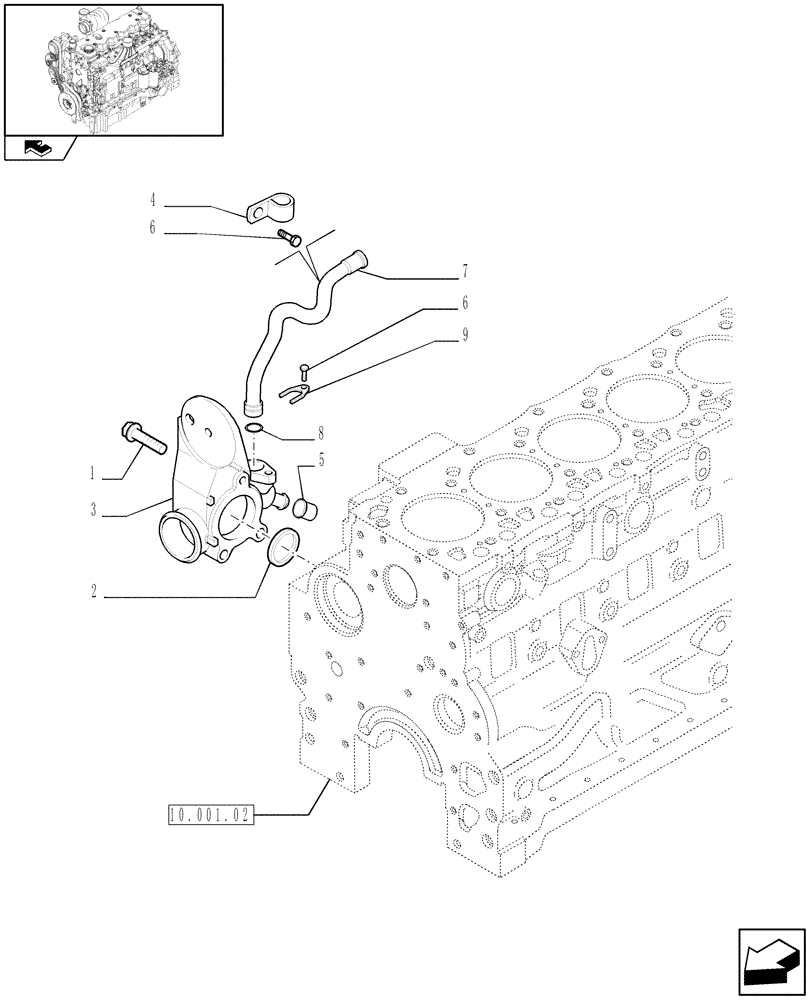

Запчасти Case IH F4DFE613G A004 (10.400.01[01]) - ENGINE COOLING SYSTEM PIPING (10) - ENGINE

1

4895174

SCREW,Flg Hd, M10 x 1.5 x 65

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

2859659

MANIFOLD

ASSY

1шт.

4

2854845

COLLAR CLAMP

1шт.

5

7300706

SPARE PART

1шт.

6

4895164

SCREW,Hex, Flg Hd, M6 x 16

2шт.

7

2854841

TUBE

1шт.

8

2853563

O-RING,20.29mm ID x 2.62mm

1шт.

9

2853564

BRACKET

1шт.

10

2854000

SELF-TAP SCREW,Hex, M6 x 16mm

1шт.
