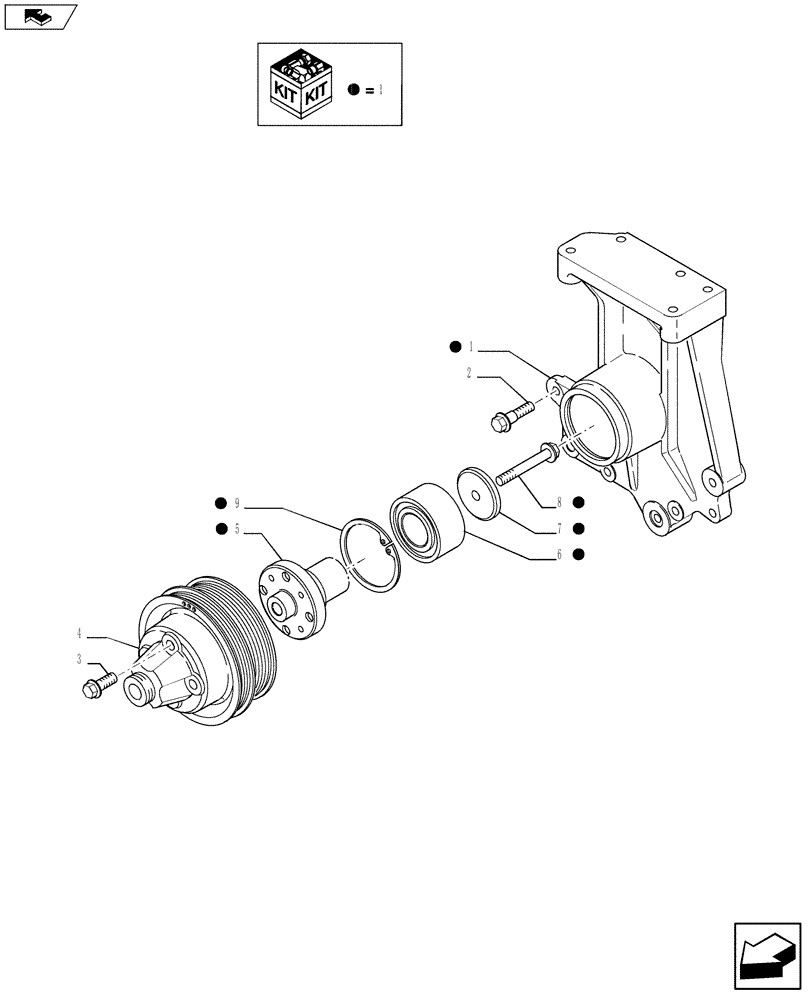

Запчасти Case IH F4DFE613F A002 (10.414.03) - FAN DRIVE (2855166-84369509) (10) - ENGINE

1

2859566

SUPPORT ASSY.

Assy, Contains Ref. 5 - 9

1шт.

2

4895323

FLANGE BOLT,Hex, M8 x 1.25 x 40mm

4шт.

2

4895608

SCREW

3шт.

3

4899032

SCREW,Hex Flg, M10 x 1.5 x 25

4шт.

4

84370204

PULLEY

1шт.

5

4892426

HUB

1шт.

6

2859567

BALL BEARING

1шт.

7

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

1шт.

8

2852172

BOLT,Flng, M10 x 1.5 x 70mm

1шт.

9

2852171

SNAP RING

1шт.
