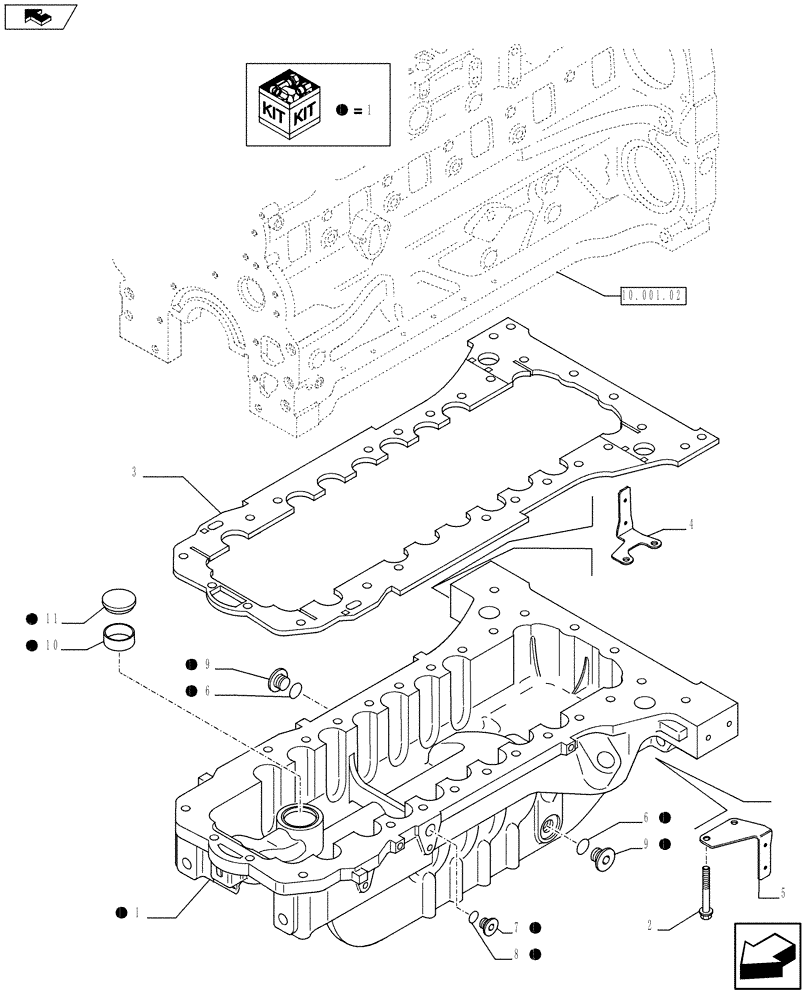

Запчасти Case IH F4DFE613E A002 (10.102.01) - ENGINE OIL SUMP (2853795) (10) - ENGINE

1

2856234

ENGINE OIL PAN

Assy, Contains Ref. 6 - 11

1шт.

2

4895339

SCREW,Hex Flange Head Cap, M8 x 20

8 x 20

2шт.

2

4892753

SCREW,7/16" - 18

24шт.

2

4895743

BOLT

6шт.

2

4892742

BOLT,Flng, M10 x 1.5 x 190mm, Cl 10.9

2шт.

3

4894301

OIL PAN GASKET SET

1шт.

4

2853794

BRACKET

2шт.

5

2853520

BRACKET

1шт.

6

2853728

O-RING,M23.47 ID x 2.62 Thk

2шт.

7

4893206

PLUG,M18 x 1.5

M18 x 1.5

1шт.

8

4893207

SEALING WASHER,15.5mm ID x 26mm OD x 1.5mm Thk

18 x 26 x 1.5

1шт.

9

4894139

PLUG,Hex Soc, M22 x 1.5

2шт.

10

4895935

FILTER SCREEN

1шт.

11

4895936

PLUG

1шт.
