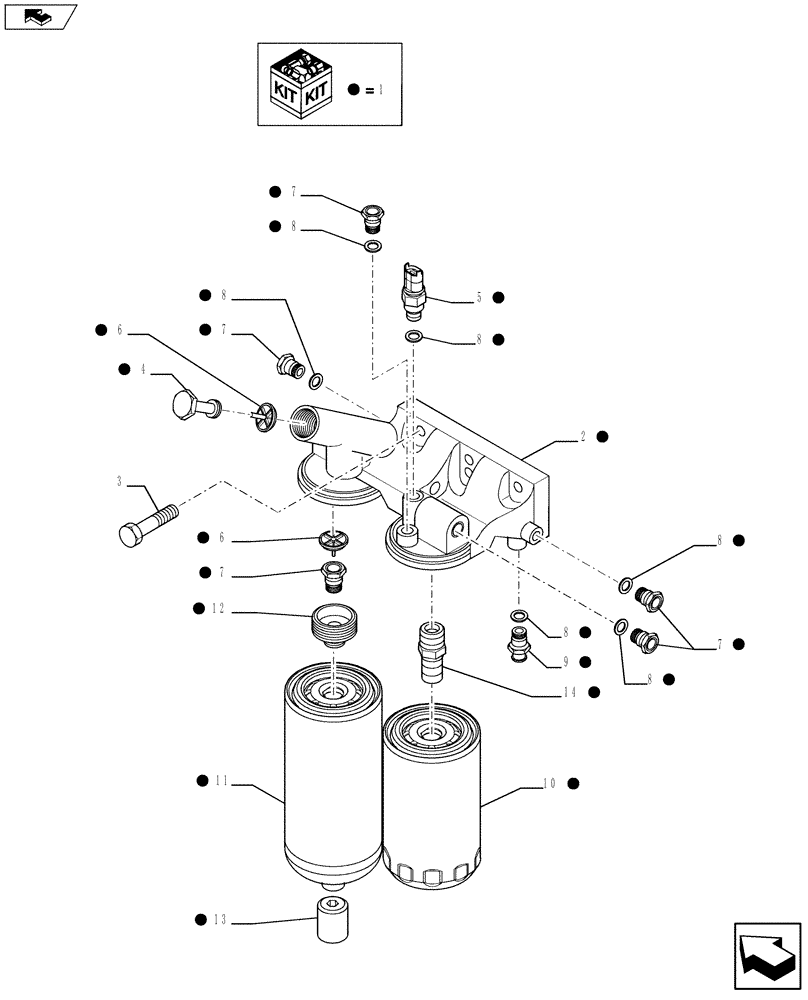

Запчасти Case IH F4DFE6132 A002 (10.206.01) - FUEL FILTER (2859649) (10) - ENGINE

1

84366486

FILTER ASSY

Assy, Contains Ref. 2, 4 - 14

1шт.

2

2830376

FILTER HEAD

1шт.

3

2852247

BOLT,Hex, M8 x 1.25 x 30mm

M8 x 30

3шт.

4

84366489

FEED PUMP

1шт.

5

4897224

SENSOR

Temperature

1шт.

6

84366488

VALVE

2шт.

7

2854563

FITTING

5шт.

8

4894721

SEALING WASHER,12.2mm ID x 17mm OD x 1.5mm Thk

6шт.

9

2854564

FITTING,M12 x 1.5 - 12 H9

1шт.

10

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

1шт.

11

84278636

FUEL FILTER,96.2mm OD x 183mm L, M16x1.5 - 6H, W/ WIF Sensor (M14)

w/ Water Separator

1шт.

12

2830375

ADAPTER

1шт.

13

2853585

SENSOR

M8 x 25

1шт.

14

2830459

ADAPTER

1шт.
