(10.106.AO[02]) - ROCKER ARM, HOUSING & COVER

Запчасти Case IH F4DFE413T B002 (10.106.AO[02]) - ROCKER ARM, HOUSING & COVER (10) - ENGINE

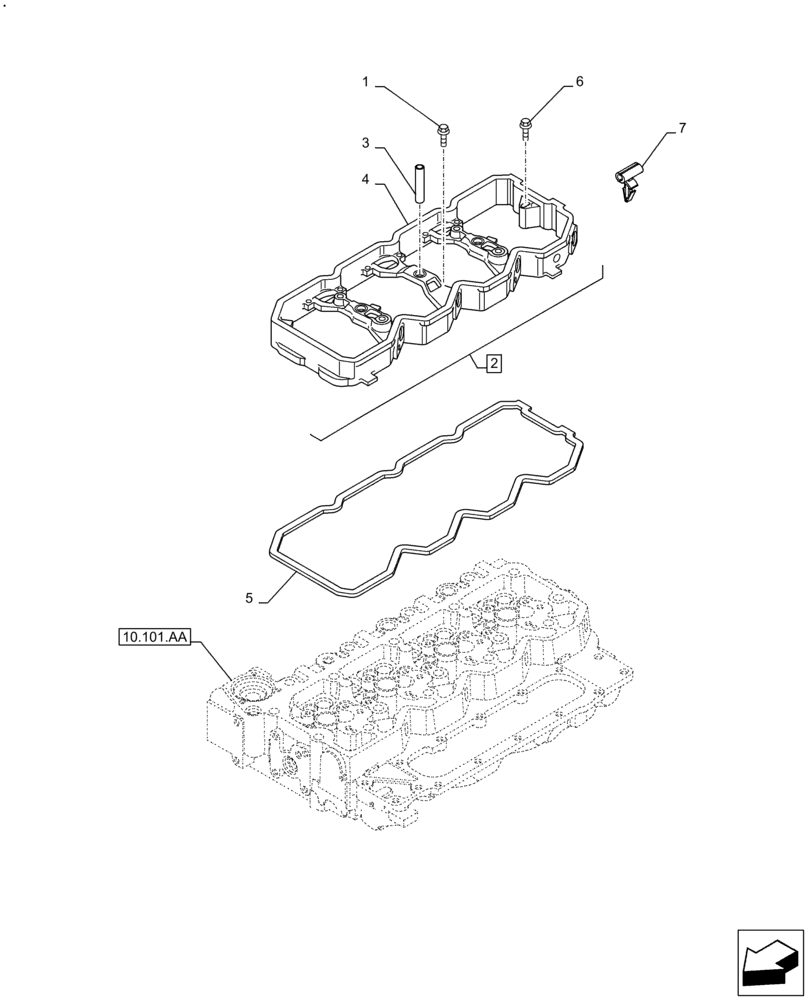

Схема запчастей Case IH F4DFE413T B002 - (10.106.AO[02]) - ROCKER ARM, HOUSING & COVER (10) - ENGINE
5
3
7
2
10.101.aa
1
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4895432

SCREW,M8 x 1.25 x 70mm

M8 x 1.25 x 70

3шт.

2

4899256

HOUSING

ASSY, Incl 3, 4

1шт.

3

4899245

SLEEVE,9mm ID x 13.9mm OD x 55.25mm L

3шт.

4

NSS

NOT SOLD SEPARAT

Housing, Incl in 2

1шт.

5

2853535

GASKET,10.35mm Thk

1шт.

6

4899089

SCREW,Hex Flg, M8 x 1.25 x 50

M8 x 1.25 x 50

4шт.

7

2852428

WIRE CLAMP,6mm ID

4шт.

Выбрано товаров: 7
