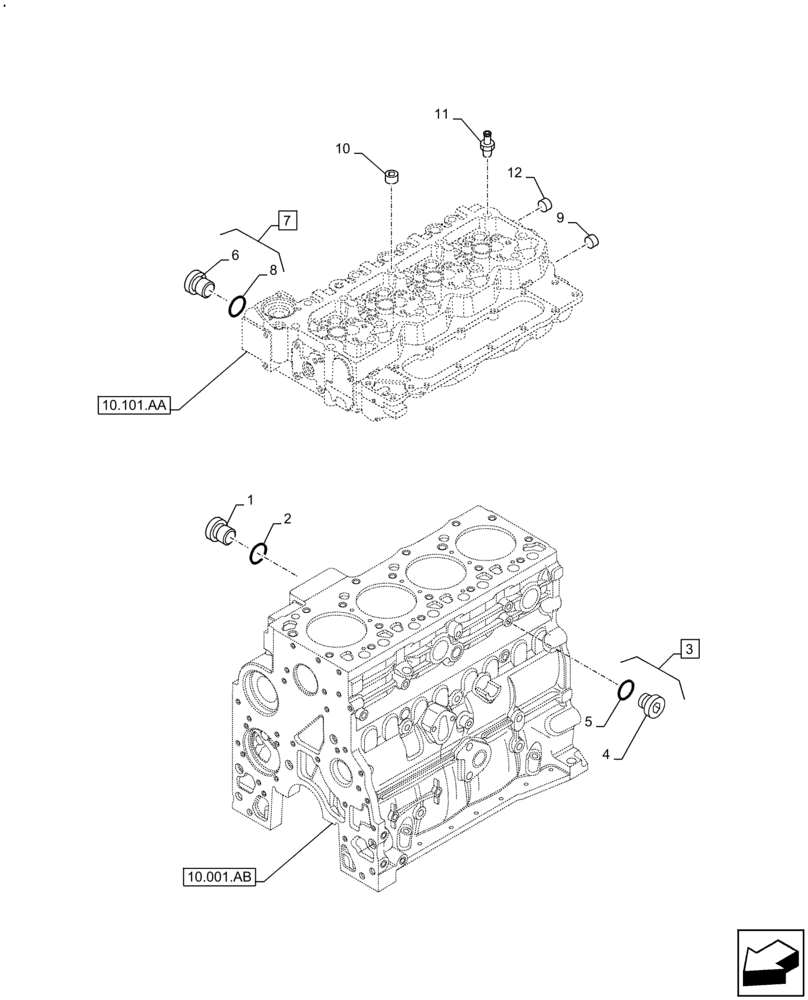

Запчасти Case IH F4DFE413S B002 (10.400.AE) - COOLANT HEATING LINES (10) - ENGINE

1

4895394

HEX SOCKET PLUG,M18 x 1.5

1шт.

2

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

3

4895623

HEX SOCKET PLUG,M16 x 1.5

ASSY, Incl 11 - 12, Inlet

1шт.

4

NSS

NOT SOLD SEPARAT

Plug, Incl in 11

1шт.

5

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

6

NSS

NOT SOLD SEPARAT

Plug, Incl in 14

1шт.

7

4895080

HEX SOCKET PLUG,M22 x 1.5

ASSY, Incl 13, 15

2шт.

8

4895082

O-RING,19.3mm ID x 2.2mm Width

ID = 19.3 x 2.2

2шт.

9

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.

9

2854866

HEX SOCKET PLUG,3/4"-14 NPTF

Alternative

1шт.

10

4895078

PIPE PLUG,1/2"-14

3шт.

11

47565455

FITTING,M12 x 1.5 x 20mm D

1шт.

12

4893036

PIPE PLUG,3/4"-14 NPTF

PLUG-THREADED

1шт.
