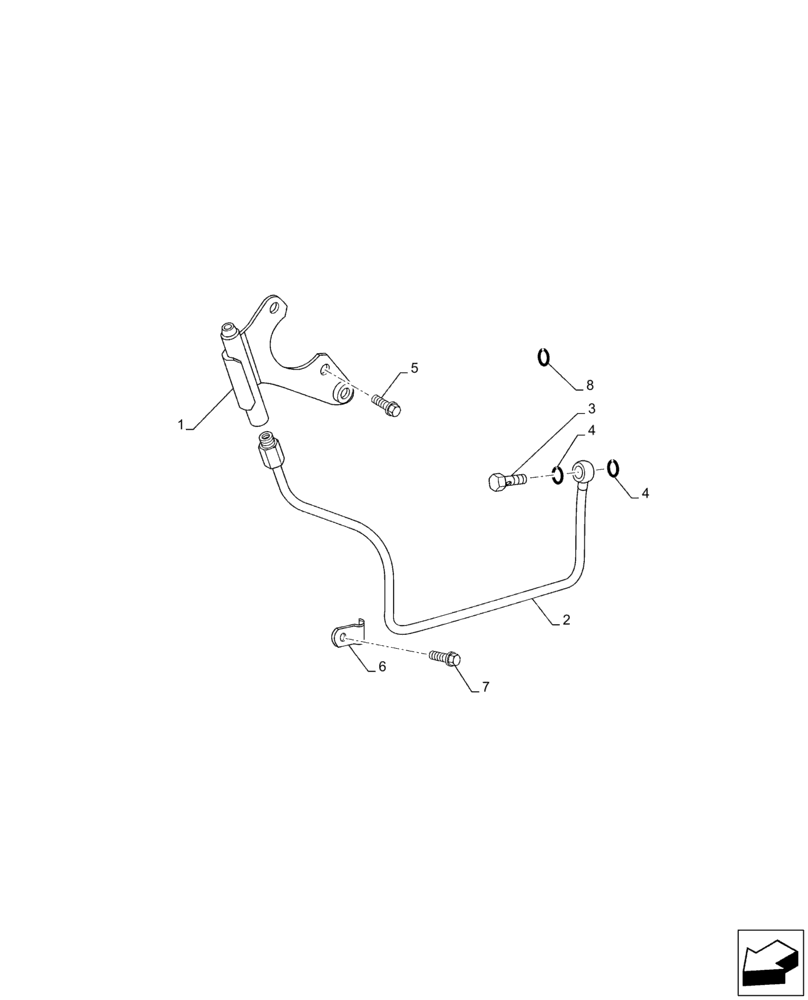

Запчасти Case IH F4DFE413S B002 (10.254.AZ[03]) - ENGINE EXHAUST BRAKE, PIPE, WATER SUPPLY (10) - ENGINE

1

47719338

BRACKET

1шт.

2

47719270

PIPE

1шт.

3

4893096

BANJO BOLT,Hex, M10 x 1 x 19mm

2шт.

4

4899010

SEALING WASHER,10.2mm ID x 13.4mm OD x 1mm Thk

4шт.

5

4899020

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

1шт.

6

10418501

BRACKET,10mm, Coat, 7mm Bolt Hole, P Type

1шт.

7

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

1шт.

7

2853970

BOLT

1шт.

8

4898439

O-RING,20.29mm ID x 2.62mm Width

1шт.
