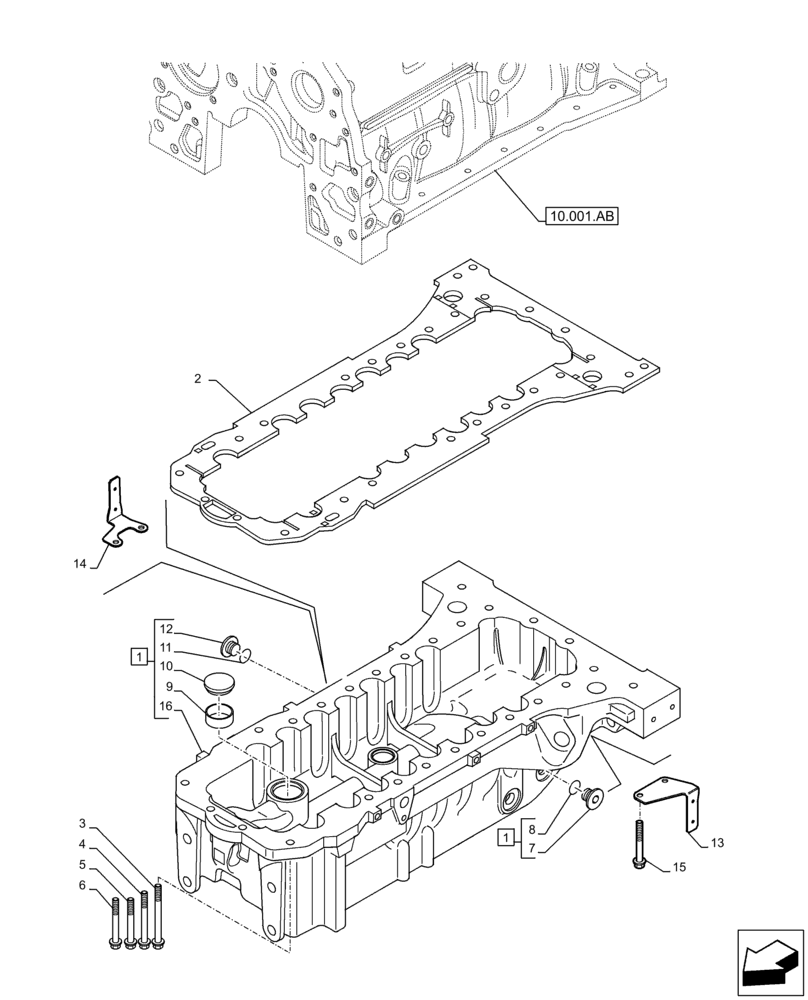

Запчасти Case IH F4DFE413S B002 (10.102.AP) - ENGINE OIL PAN (10) - ENGINE

1

47721080

PAN

ASSY, Incl 7-13

1шт.

2

4894295

OIL PAN GASKET SET

1шт.

3

4895339

SCREW,Hex Flange Head Cap, M8 x 20

2шт.

4

4892753

SCREW,7/16" - 18

18шт.

5

4895743

BOLT

4шт.

6

4892742

BOLT,Flng, M10 x 1.5 x 190mm, Cl 10.9

2шт.

7

10273111

PLUG,M18 x 1.5 x 13

Plug, Incl in 1

1шт.

8

99489020

FITTING

1шт.

9

NSS

NOT SOLD SEPARAT

Filter screen, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

11

14438185

O-RING,24mm ID x 3mm

2шт.

12

4894139

PLUG,Hex Soc, M22 x 1.5

2шт.

13

2853794

BRACKET

1шт.

14

2853520

BRACKET

1шт.

15

2853997

SCREW,Hex, Flg Hd, M6 x 1 x 12mm

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.
