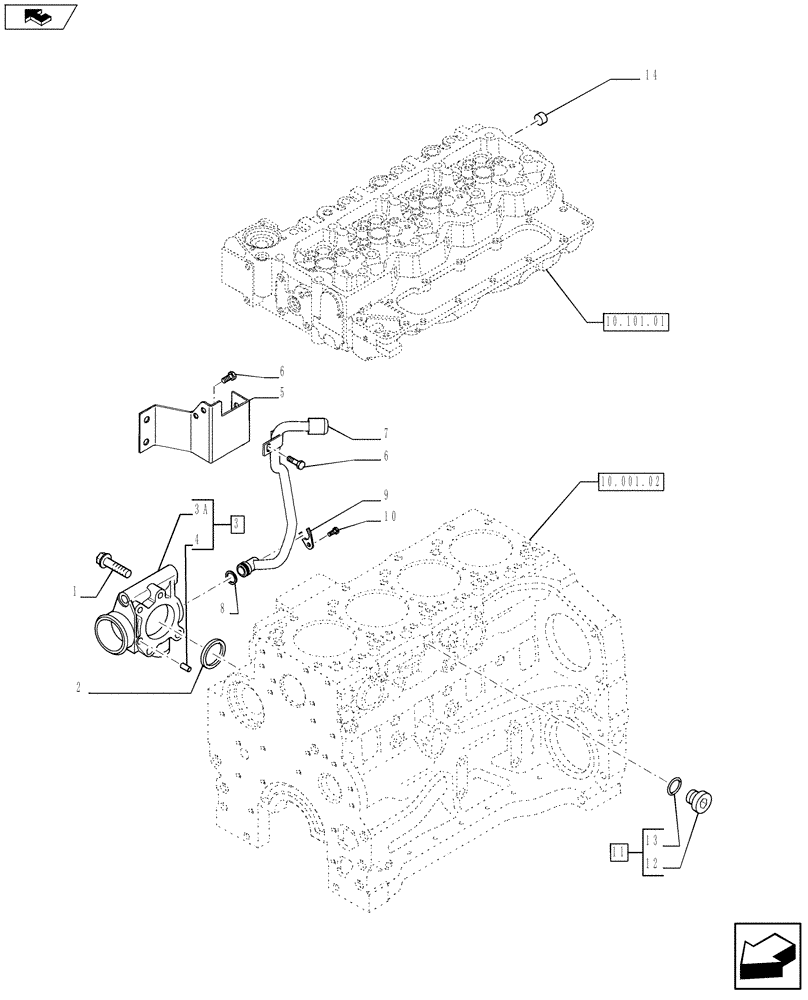

Запчасти Case IH F4DFE413D A002 (10.402.01[01]) - PIPING - ENGINE COOLING SYSTEM (2856257-84496917) (10) - ENGINE

1

4895174

SCREW,Flg Hd, M10 x 1.5 x 65

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

2859452

SUPPORT

ASSY

1шт.

3a

NSS

NOT SOLD SEPARAT

1шт.

4

2830894

DOWEL,.25" OD x .625" L

2шт.

5

2859245

SUPPORT

1шт.

6

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

4шт.

7

5801423063

PIPE,PIPE ASSY

1шт.

8

2853563

O-RING,20.29mm ID x 2.62mm

1шт.

9

2853564

BRACKET

1шт.

10

2854000

SELF-TAP SCREW,Hex, M6 x 16mm

1шт.

11

4895623

HEX SOCKET PLUG,M16 x 1.5

ASSY

1шт.

12

NSS

NOT SOLD SEPARAT

1шт.

13

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

14

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.
