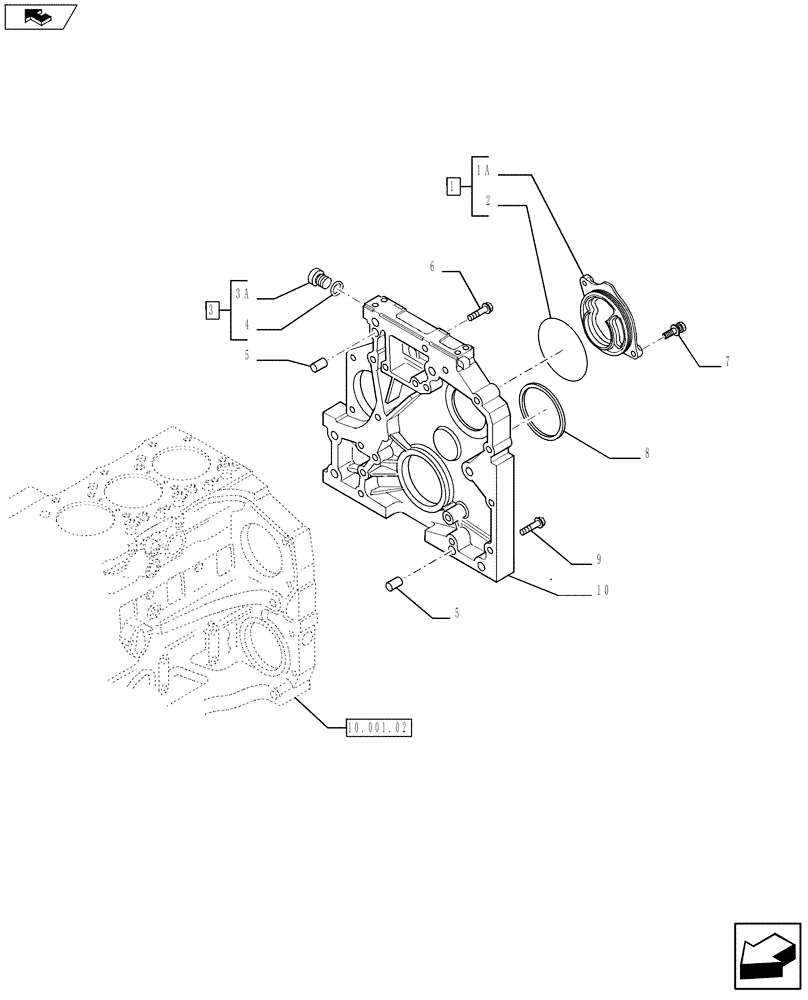

Запчасти Case IH F4DFE413D A002 (10.106.03) - CRANKCASE COVERS (2854808) (10) - ENGINE

1

2854809

COVER

ASSY

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

2853695

O-RING

1шт.

3

4895392

HEX SOCKET PLUG,M18 x 1.5

ASSY

1шт.

3a

NSS

NOT SOLD SEPARAT

1шт.

4

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

5

4894532

DOWEL,M18 x 10 L

2шт.

6

4899145

BOLT,Flng, M12 x 1.75 x 100mm

6шт.

7

4895586

SCREW,Hex, Flg Hd, M8 x 16

2шт.

8

4890833

OIL SEAL,M130 x 155 x 12.5/16

1шт.

9

4891250

BOLT,Flng, M12 x 1.75 x 78mm, Cl 10.9

15шт.

10

2855172

HOUSING

1шт.
