Запчасти Case IH F4DFE413C A004 (10.105.02) - CONNECTING ROD (84496915) (10) - ENGINE

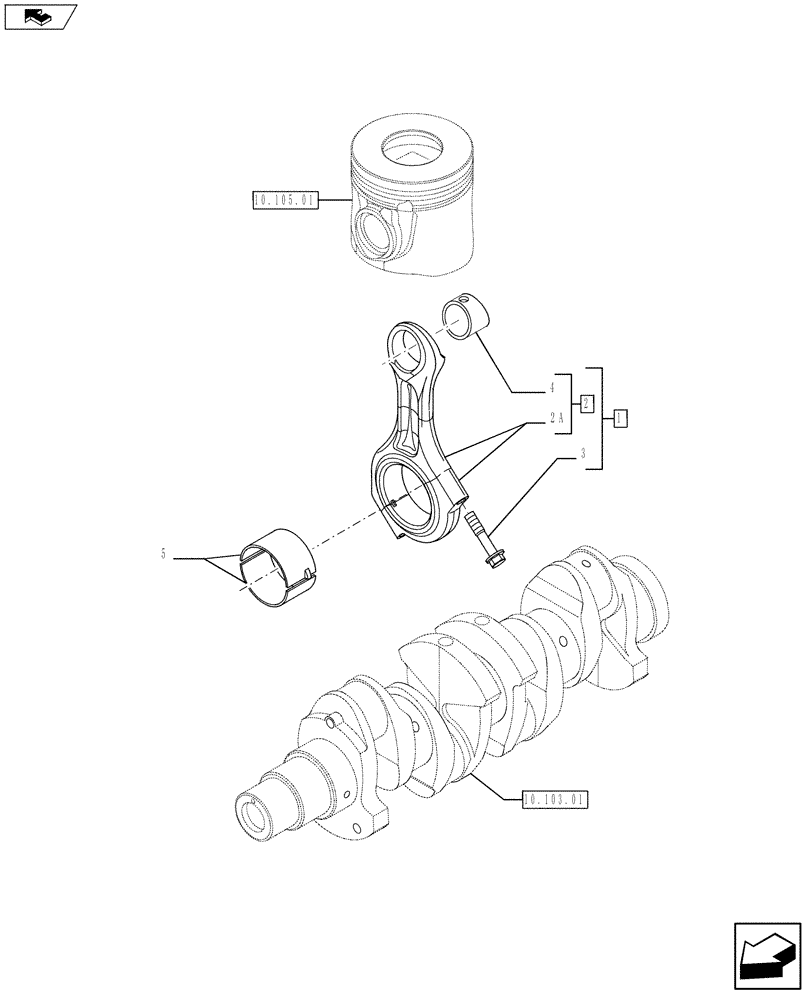

Схема запчастей Case IH F4DFE413C A004 - (10.105.02) - CONNECTING ROD (84496915) (10) - ENGINE
2
3
10.103.01
1
10.105.01
home
4
5
2a

Артикул

Название

Примечание

Количество

1

2831298

CONNECTING ROD

ASSY

4шт.

2831298R

REMAN-CONNECTING ROD

F4DFE413C*A004 ENGINE 5801486163 - 84265767 , MAXXUM 110 EP EFFICIENT POWER MULTICONTROLLER , T6.140

4шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

2

4895747

CONNECTING ROD

ASSY

1шт.

2831298R

REMAN-CONNECTING ROD

F4DFE413C*A004 ENGINE 5801486163 - 84265767 , T6.140 , MAXXUM 110 all are Reman For New P/N 4895747

1шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

2a

NSS

NOT SOLD SEPARAT

1шт.

3

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

2шт.

4

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.

5

2856309

CRANKSHAFT BEARING

4шт.

5

4892715

BEARING LINER

BEARING, CON. ROD

4шт.

Выбрано товаров: 11
