(10.304.01[02]) - PUMP, ENGINE OIL & RELATED PARTS (2853586)

Запчасти Case IH F4DFE413B A002 (10.304.01[02]) - PUMP, ENGINE OIL & RELATED PARTS (2853586) (10) - ENGINE

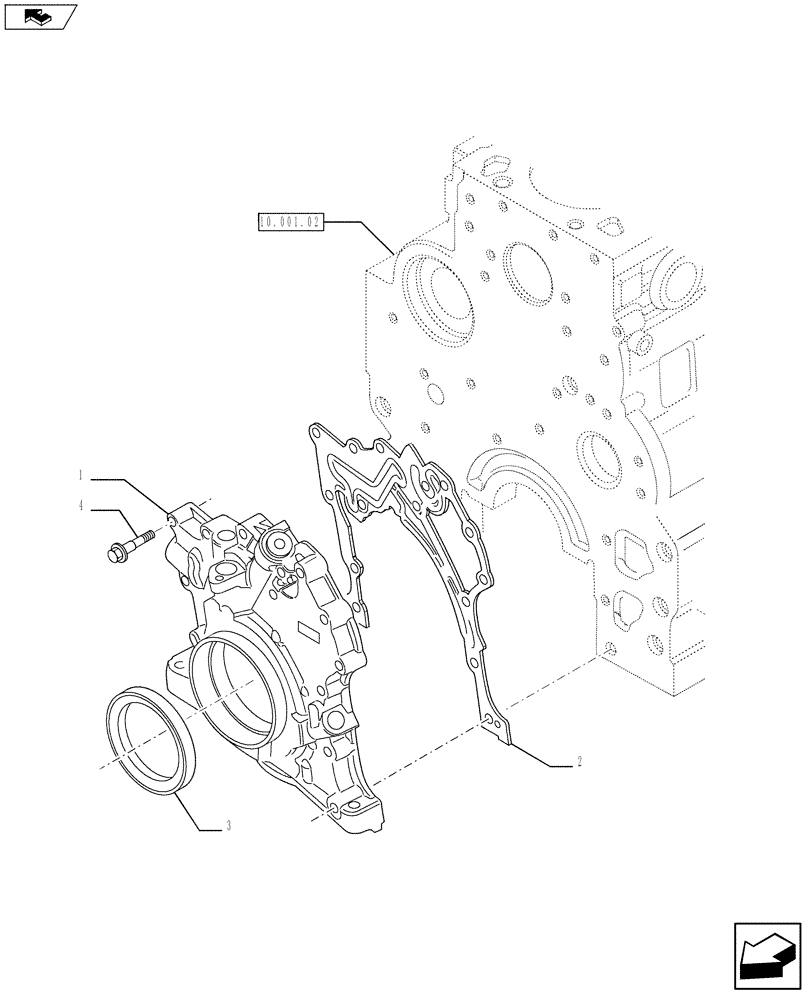

Схема запчастей Case IH F4DFE413B A002 - (10.304.01[02]) - PUMP, ENGINE OIL & RELATED PARTS (2853586) (10) - ENGINE
3
4
10.001.02
home
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2830913

ENGINE OIL PUMP

1шт.

2830913R

REMAN-ENG OIL PUMP

F4DFE413B*A002, MAXXUM 120, T6.150

1шт.

2830913C

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

2830972

GASKET,2.3mm Thk

1шт.

3

4890832

OIL SEAL,M70 x 100 x 12.5/16

1шт.

4

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

11шт.

4

4899089

SCREW,Hex Flg, M8 x 1.25 x 50

2шт.

4

4899031

BOLT,Flng, M8 x 1.25 x 25mm

2шт.
