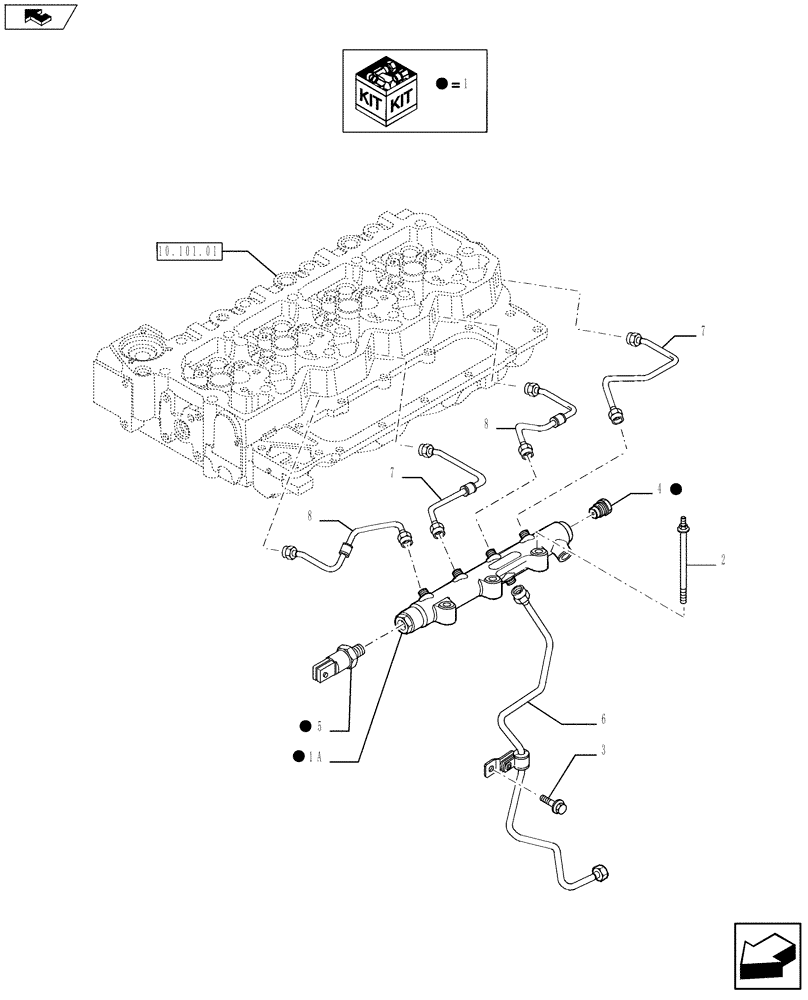

Запчасти Case IH F4DFE413B A002 (10.218.03) - INJECTION EQUIPMENT - PIPING (2859254) (10) - ENGINE

1

2859255

MANIFOLD

Assy, Contains Ref. 1A, 4, 5

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

2853537

BOLT,Hex Flange Head Cap M8 x 1.25 x 125mm

3шт.

3

4899020

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

1шт.

4

2854543

VALVE PRESSURE RELIE

1шт.

5

2854542

SENSOR,FUEL PRESSURE TO THE MANIFOLD

1шт.

6

2857050

PIPE

1шт.

7

2857017

PIPE

2шт.

8

2857020

PIPE

2шт.
