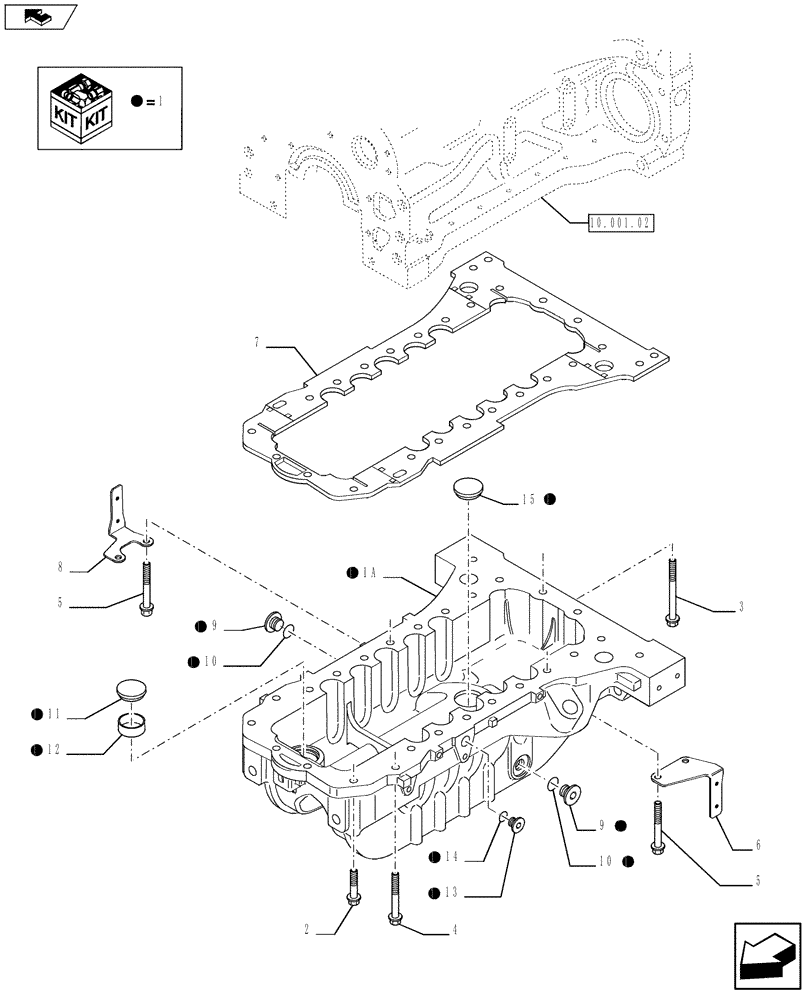

Запчасти Case IH F4DFE413A A003 (10.102.01) - ENGINE OIL SUMP (2853792) (10) - ENGINE

1

2856233

ENGINE OIL PAN

Assy, Contains Ref. 1A, 9 - 15

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

4895339

SCREW,Hex Flange Head Cap, M8 x 20

2шт.

3

4892742

BOLT,Flng, M10 x 1.5 x 190mm, Cl 10.9

2шт.

4

4895743

BOLT

4шт.

5

4892753

SCREW,7/16" - 18

18шт.

6

2853520

BRACKET

1шт.

7

4894295

OIL PAN GASKET SET

1шт.

8

2853794

BRACKET

1шт.

9

4894139

PLUG,Hex Soc, M22 x 1.5

2шт.

10

2853728

O-RING,M23.47 ID x 2.62 Thk

2шт.

11

4895936

PLUG

1шт.

12

4895935

FILTER SCREEN

1шт.

13

4893206

PLUG,M18 x 1.5

1шт.

14

4893207

SEALING WASHER,15.5mm ID x 26mm OD x 1.5mm Thk

1шт.

15

2831461

HOLE PLUG BUTTON,44.729mm D

1шт.
