(10.304.AC) - ENGINE OIL PUMP

Запчасти Case IH F4DFE4131 B007 (10.304.AC) - ENGINE OIL PUMP (10) - ENGINE

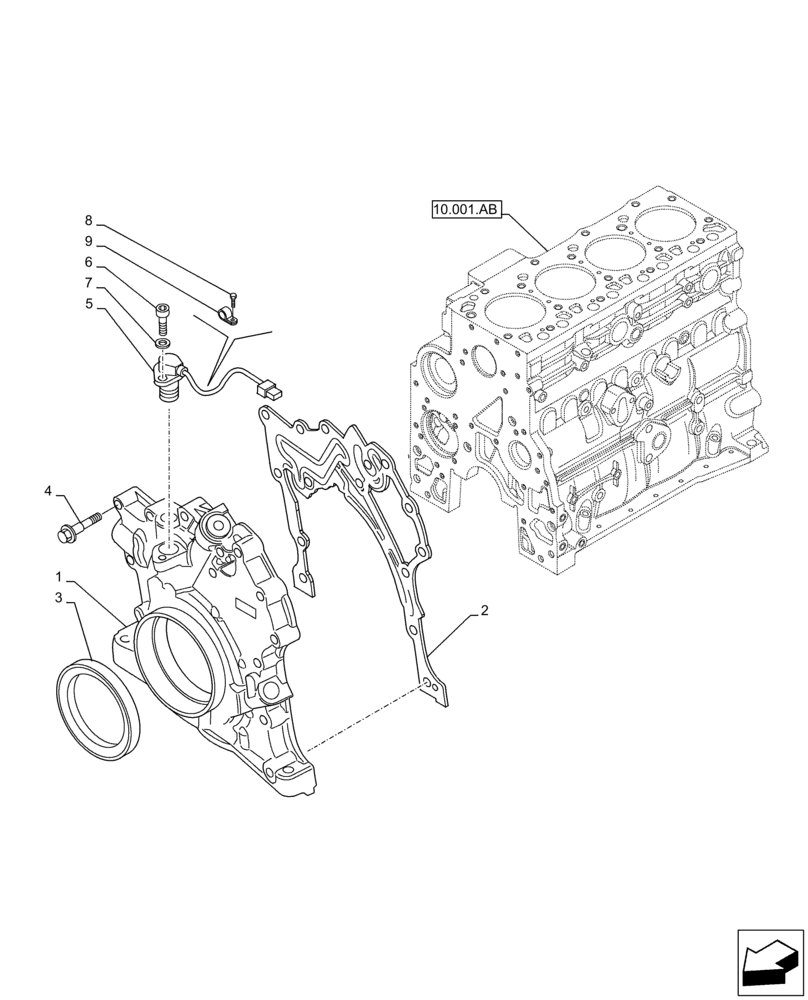

Схема запчастей Case IH F4DFE4131 B007 - (10.304.AC) - ENGINE OIL PUMP (10) - ENGINE
6
1
8
7
10.001.ab
5
2
4
9
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2830913

ENGINE OIL PUMP

1шт.

1

2830913R

REMAN-ENG OIL PUMP

1шт.

1

2830913C

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

2830972

GASKET,2.3mm Thk

1шт.

3

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

11шт.

4

4899031

BOLT,Flng, M8 x 1.25 x 25mm

2шт.

5

84575644

OIL SEAL,70mm ID x 100mm OD x 16mm Thk

1шт.

6

4899089

SCREW,Hex Flg, M8 x 1.25 x 50

2шт.
