(50.200.AB) - COMPRESSOR - AIR CONDITIONING, SUPPORT

Запчасти Case IH F4DE9684L J112 (50.200.AB) - COMPRESSOR - AIR CONDITIONING, SUPPORT (50) - CAB CLIMATE CONTROL

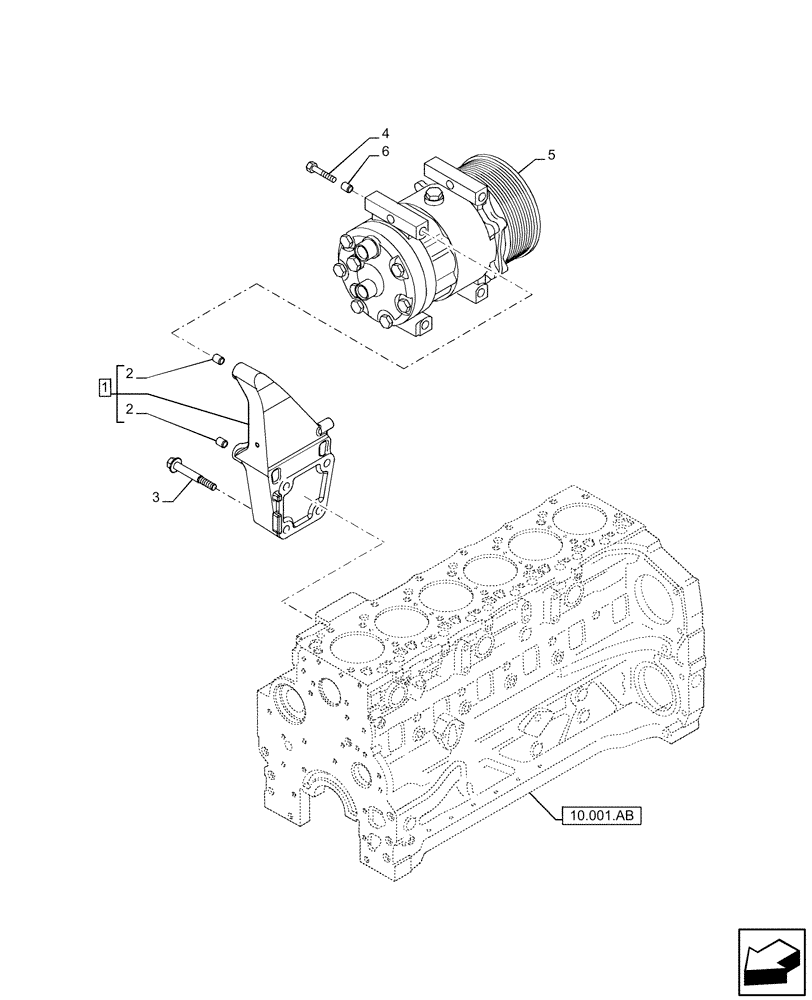

Схема запчастей Case IH F4DE9684L J112 - (50.200.AB) - COMPRESSOR - AIR CONDITIONING, SUPPORT (50) - CAB CLIMATE CONTROL
10.001.ab
6
2
4
1
5
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2855308

BRACKET

ASSY, Contains Ref. 2

1шт.

2

4895227

GUIDE RING,11.15mm OD, 8.5mm ID, 9mm L

2шт.

3

4895292

FLANGE BOLT,Hex, M10 x 1.5 x 70mm

4шт.

4

NS

NOT SERVICED

Bolt

3шт.

5

NS

NOT SERVICED

Aircond. compressor

1шт.

6

NS

NOT SERVICED

Guide ring

1шт.
