(10.218.AQ) - INJECTION PUMP - COMPONENTS

Запчасти Case IH F4DE9684L J112 (10.218.AQ) - INJECTION PUMP - COMPONENTS (10) - ENGINE

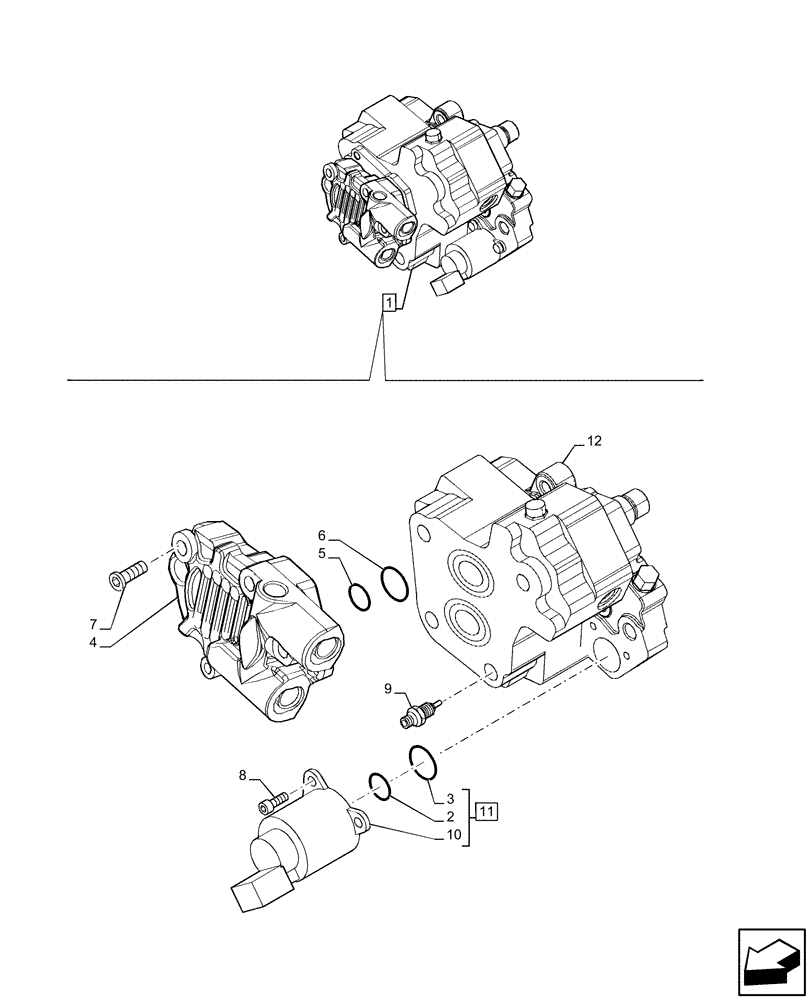

Схема запчастей Case IH F4DE9684L J112 - (10.218.AQ) - INJECTION PUMP - COMPONENTS (10) - ENGINE
5
12
1
6
8
3
11
4
9
7
10
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Solenoid, Incl in 1

1шт.

1

84385110

FUEL INJECTION PUMP

ASSY, Incl 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Fuel Pump, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

4шт.

8

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

3шт.

9

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Inijection Pump Component, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Injection Pump Component, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Inijection Pump Component, Incl in 1

1шт.
