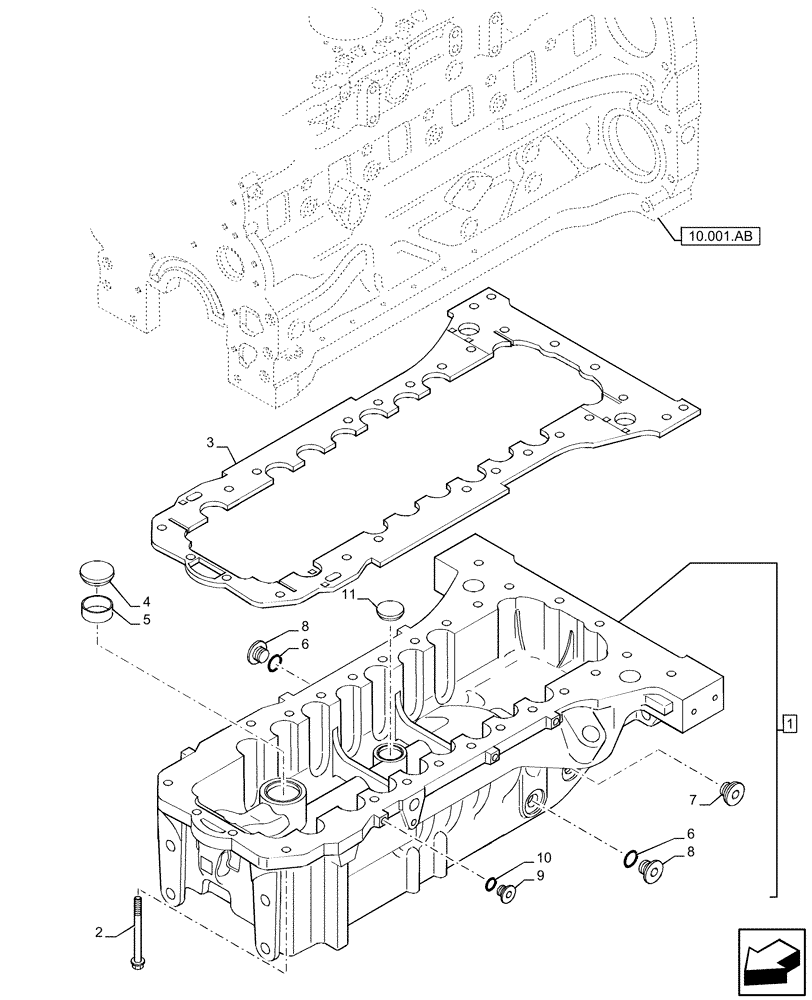

Запчасти Case IH F4DE9684L J112 (10.102.AP) - ENGINE OIL SUMP (10) - ENGINE

1

2855274

ENGINE OIL PAN

Incl 4 - 6, 8 - 10

1шт.

2

4895339

SCREW,Hex Flange Head Cap, M8 x 20

2шт.

2

4892753

SCREW,7/16" - 18

22шт.

2

2855278

SCREW,Hex Washer Head, M10 x 1.5 x 150mm L

6шт.

2

4892742

BOLT,Flng, M10 x 1.5 x 190mm, Cl 10.9

4шт.

3

4894301

OIL PAN GASKET SET

1шт.

4

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Filter screen, Incl in 1

1шт.

6

2853728

O-RING,M23.47 ID x 2.62 Thk

2шт.

7

NS

NOT SERVICED

Plug

1шт.

8

4894139

PLUG,Hex Soc, M22 x 1.5

3шт.

9

4893206

PLUG,M18 x 1.5

1шт.

10

4893207

SEALING WASHER,15.5mm ID x 26mm OD x 1.5mm Thk

1шт.

11

28331461

1шт.
