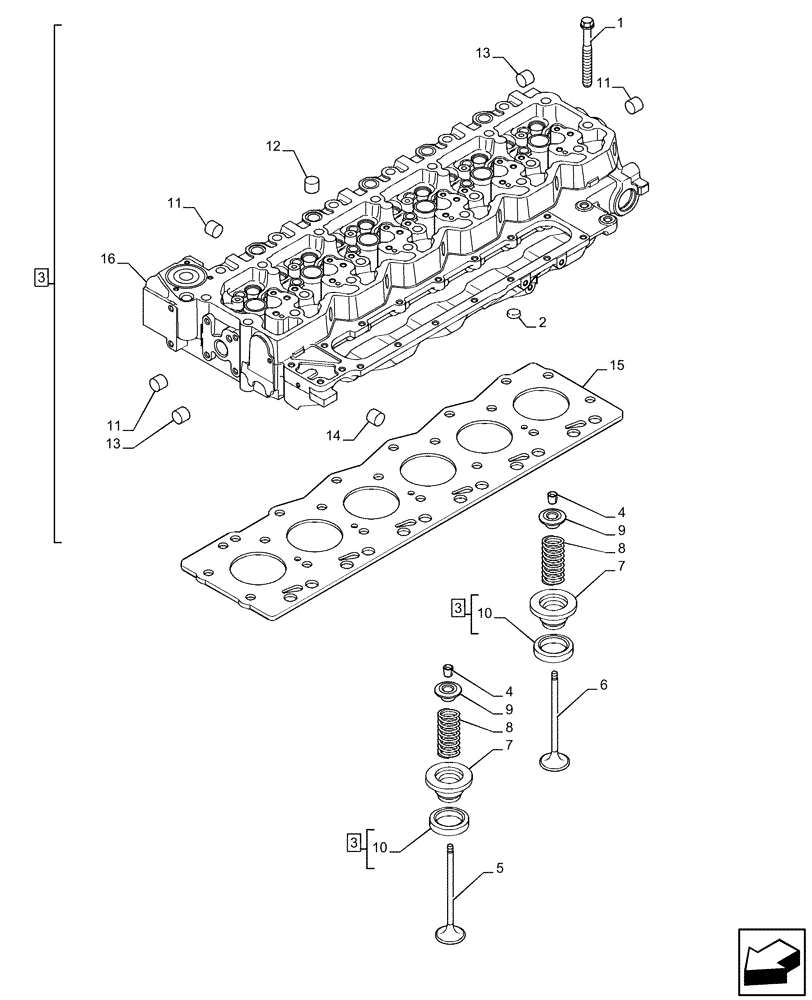

Запчасти Case IH F4DE9684L J112 (10.101.AA) - CYLINDER HEAD (10) - ENGINE

1

4891024

BOLT,Flng, M12 x 1.75 x 130mm

12шт.

1

4891025

SCREW,Flng, M12 x 1.75 x 150mm

14шт.

2

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.

3

87536188

CYLINDER HEAD

ASSY, Incl 10 - 14

1шт.

3

2831274

CYLINDER HEAD,6 Cylinders

1шт.

3

2831279

CYLINDER HEAD,6 Cylinders

1шт.

3

2831278

CYLINDER HEAD,6 Cylinders

1шт.

4

4899081

ROCKER ARM COTTER

48шт.

5

4895051

STD EXHAUST VALVE

12шт.

6

4895052

STD INLET VALVE

12шт.

7

2831287

SEAL,12.6mm ID x 28.5mm OD x 0.6mm Thk

24шт.

8

2831473

VALVE SPRING,Compression, 18.8mmOD x 45.2mm L

24шт.

9

4895074

CUP,18mm ID

24шт.

10

4893244

VALVE SEAT,28.42mm ID x 34.9mm OD x 5.75mm L

24шт.

10

4897578

VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L

Inlet valve

12шт.

10

4897106

VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L

Exhauste valve

12шт.

11

4895085

EXPANSION PLUG,25.74mm

13шт.

12

4895089

PLUG,0.886" L

11шт.

13

4895406

EXPANSION PLUG,9.8mm OD

7шт.

14

4895407

EXPANSION PLUG,38.28mm OD

2шт.

15

2830705

CYLINDER HEAD GASKET,1.15mm Thk

1шт.

15

2830704

CYLINDER HEAD GASKET,1.25mm Thk

1шт.

16

NSS

NOT SOLD SEPARAT

Cylinder Head, Incl in 3

1шт.
