(55.015.AA) - ELECTRONIC ENGINE SENSORS, SWITCHES AND CONTROL UNIT

Запчасти Case IH F4DE9684B J114 (55.015.AA) - ELECTRONIC ENGINE SENSORS, SWITCHES AND CONTROL UNIT (55) - ELECTRICAL SYSTEMS

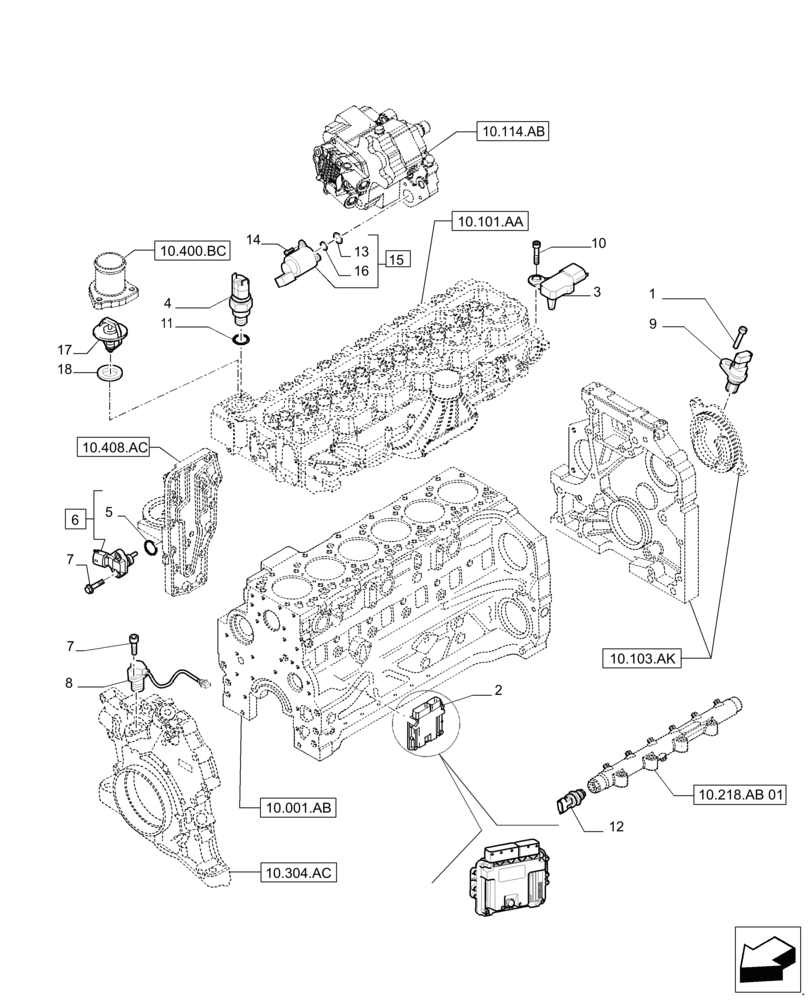

Схема запчастей Case IH F4DE9684B J114 - (55.015.AA) - ELECTRONIC ENGINE SENSORS, SWITCHES AND CONTROL UNIT (55) - ELECTRICAL SYSTEMS
17
6
10.001.ab
5
10.304.ac
10.400.bc
16
12
11
15
3
13
10.114.ab
8
10.103.ak
1
10.218.ab 01
18
10
7
10.101.aa
2
9
7
14
4
10.408.ac
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2853616

HEX SOC SCREW,Hex Soc, M6, Cl 8.8

1шт.

2

2854971

ECU

ELECTRONIC CENTRAL - EDC

1шт.

3

2852821

SENSOR

1шт.

4

4897224

SENSOR

1шт.

5

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

6

2859674

SENSOR,Oil Pressure

Incl 5

1шт.

7

4899110

SCREW,Hex Flg, M6 x 1 x 20

3шт.

8

2853552

SENSOR

1шт.

9

2854857

SENSOR

1шт.

10

4895817

BOLT,Flng, M6 x 1 x 20mm, Cl 10.9

2шт.

11

4894721

SEALING WASHER,12.2mm ID x 17mm OD x 1.5mm Thk

1шт.

12

2854542

SENSOR,FUEL PRESSURE TO THE MANIFOLD

1шт.

13

42541849

O-RING

1шт.

14

42550932

SCREW

3шт.

15

42541851

SOLENOID

Incl 13, 16

1шт.

16

42541850

O-RING

1шт.

17

84322388

THERMOSTAT

1шт.

18

84325989

SEAL

1шт.

Выбрано товаров: 18
