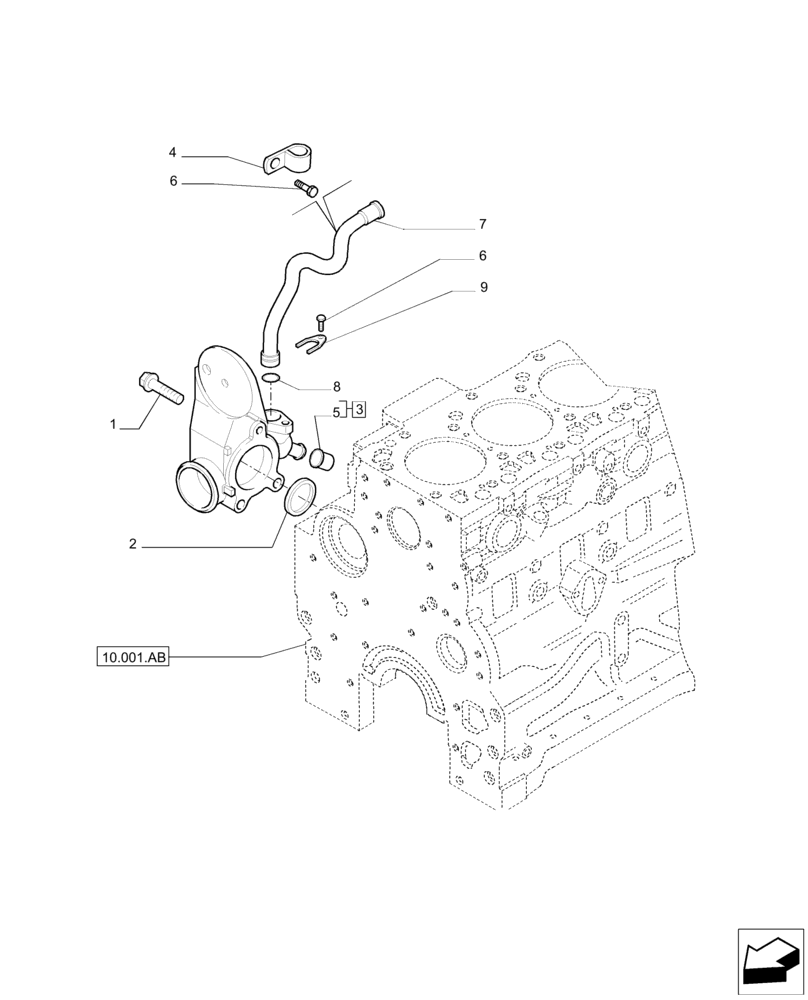

Запчасти Case IH F4DE9684B J114 (10.400.AE) - ENGINE COOLING SYSTEM PIPING (10) - ENGINE

1

4895174

SCREW,Flg Hd, M10 x 1.5 x 65

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

2859659

MANIFOLD

Incl 5

1шт.

4

2854845

COLLAR CLAMP

1шт.

5

NSS

NOT SOLD SEPARAT

Hose, Incl in 3

1шт.

6

4895164

SCREW,Hex, Flg Hd, M6 x 16

2шт.

7

2854841

TUBE

1шт.

8

2853563

O-RING,20.29mm ID x 2.62mm

1шт.

9

2853564

BRACKET

1шт.
