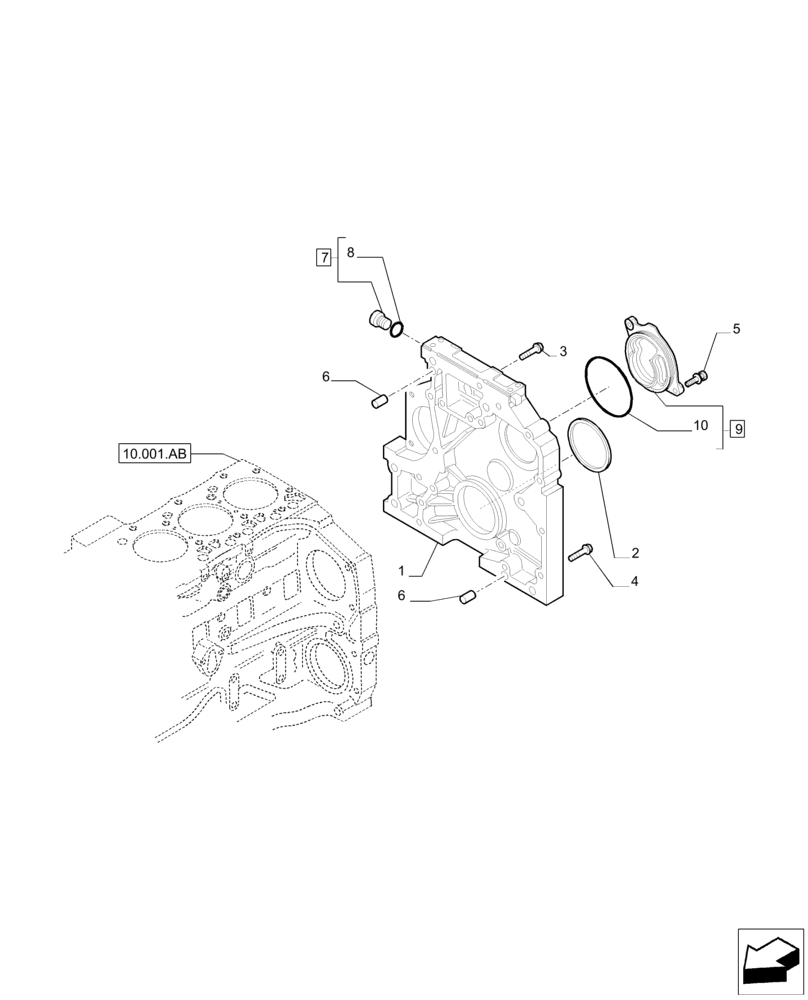

Запчасти Case IH F4DE9684B J112 (10.103.AK) - CRANKCASE COVERS (10) - ENGINE

1

2855172

HOUSING

1шт.

2

4890833

OIL SEAL,M130 x 155 x 12.5/16

1шт.

3

4899145

BOLT,Flng, M12 x 1.75 x 100mm

2шт.

4

4899385

FLANGE BOLT,Hex, M16 x 1.5 x 80mm, Cl 8.8

1шт.

4

4891250

BOLT,Flng, M12 x 1.75 x 78mm, Cl 10.9

15шт.

5

4895586

SCREW,Hex, Flg Hd, M8 x 16

2шт.

6

4894532

DOWEL,M18 x 10 L

2шт.

7

4895392

HEX SOCKET PLUG,M18 x 1.5

Incl 8

1шт.

8

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

9

2854809

COVER

Incl 10

1шт.

10

2853695

O-RING

1шт.
