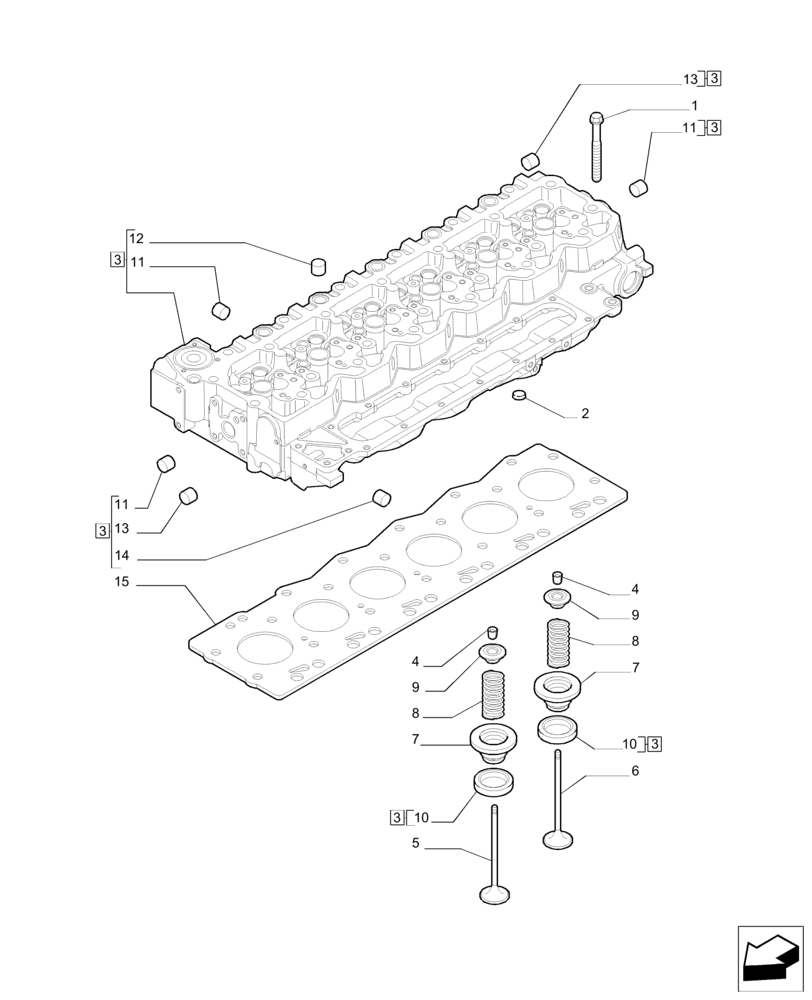

Запчасти Case IH F4DE9684B J112 (10.101.AA) - CYLINDER HEAD (10) - ENGINE

1

4891024

BOLT,Flng, M12 x 1.75 x 130mm

12шт.

1

4891025

SCREW,Flng, M12 x 1.75 x 150mm

14шт.

2

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.

3

87536188

CYLINDER HEAD

Incl 10 - 14

1шт.

4

4899081

ROCKER ARM COTTER

48шт.

5

4895051

STD EXHAUST VALVE

12шт.

6

4895052

STD INLET VALVE

12шт.

7

2831287

SEAL,12.6mm ID x 28.5mm OD x 0.6mm Thk

24шт.

8

2831473

VALVE SPRING,Compression, 18.8mmOD x 45.2mm L

24шт.

9

4895074

CUP,18mm ID

24шт.

10

4893244

VALVE SEAT,28.42mm ID x 34.9mm OD x 5.75mm L

24шт.

11

4895085

EXPANSION PLUG,25.74mm

13шт.

11

4895408

PLUG,0.511" L

2шт.

12

4895089

PLUG,0.886" L

11шт.

13

4895406

EXPANSION PLUG,9.8mm OD

7шт.

14

4895407

EXPANSION PLUG,38.28mm OD

2шт.

15

2830705

CYLINDER HEAD GASKET,1.15mm Thk

1шт.

15

2830704

CYLINDER HEAD GASKET,1.25mm Thk

1шт.
