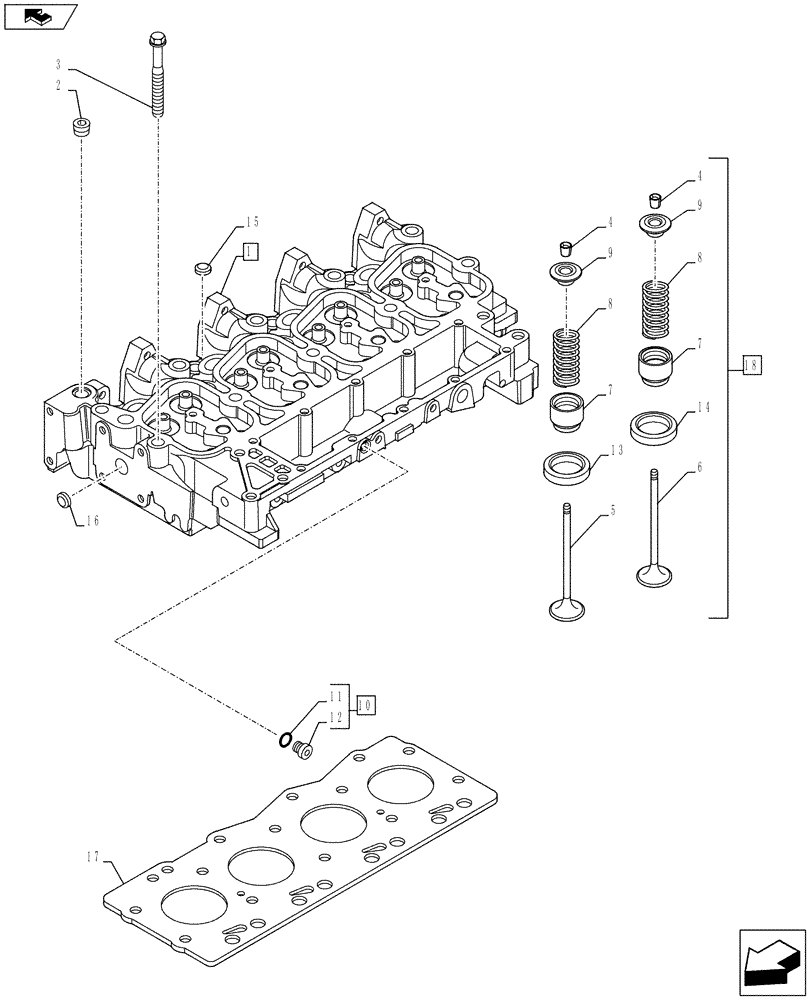

Запчасти Case IH F4CE9487N J603 (10.101.AA) - CYLINDER HEAD & RELATED PARTS (10) - ENGINE

1

2856017

CYLINDER HEAD,4 Cylinders

ASSY, Incl 13 - 16

1шт.

2

4895078

PIPE PLUG,1/2"-14

5шт.

3

4892861

CAPTIVE WASHER SCREW,Wash Hd, M12 x 1.75 x 73

4шт.

3

4892859

BOLT,Flng, M12 x 1.75 x 143mm

10шт.

4

4895183

COLLET

16шт.

5

4895188

STD EXHAUST VALVE

4шт.

6

4895187

STD INLET VALVE

4шт.

7

4895347

SEAL

8шт.

8

4895215

VALVE SPRING,Compression, 32.8mm OD x 63.5 mmL

8шт.

9

4895184

RETAINER,34mm OD, 10.63mm ID, 14.5mm L

8шт.

10

4899009

PLUG,M10 x1

ASSY, Incl 11, 12

1шт.

11

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

12

NSS

NOT SOLD SEPARAT

Plug, Incl in 10

1шт.

13

4897178

VALVE SEAT,36mm ID x 43mm OD x 6.7mm L

Exhaust

4шт.

14

4897179

VALVE SEAT,38 mmID x 47mm OD x 6.9mm L

Intake

4шт.

15

4895179

EXPANSION PLUG,M20.93

3шт.

16

4895085

EXPANSION PLUG,25.74mm

OD

1шт.

17

2830919

CYLINDER HEAD GASKET,1.4mm Thk

1шт.

17

2830920

CYLINDER HEAD GASKET,1.15mm Thk

1шт.

18

84131050

CYLINDER HEAD

ASSY, Incl 1, 4 - 9, 16

1шт.
