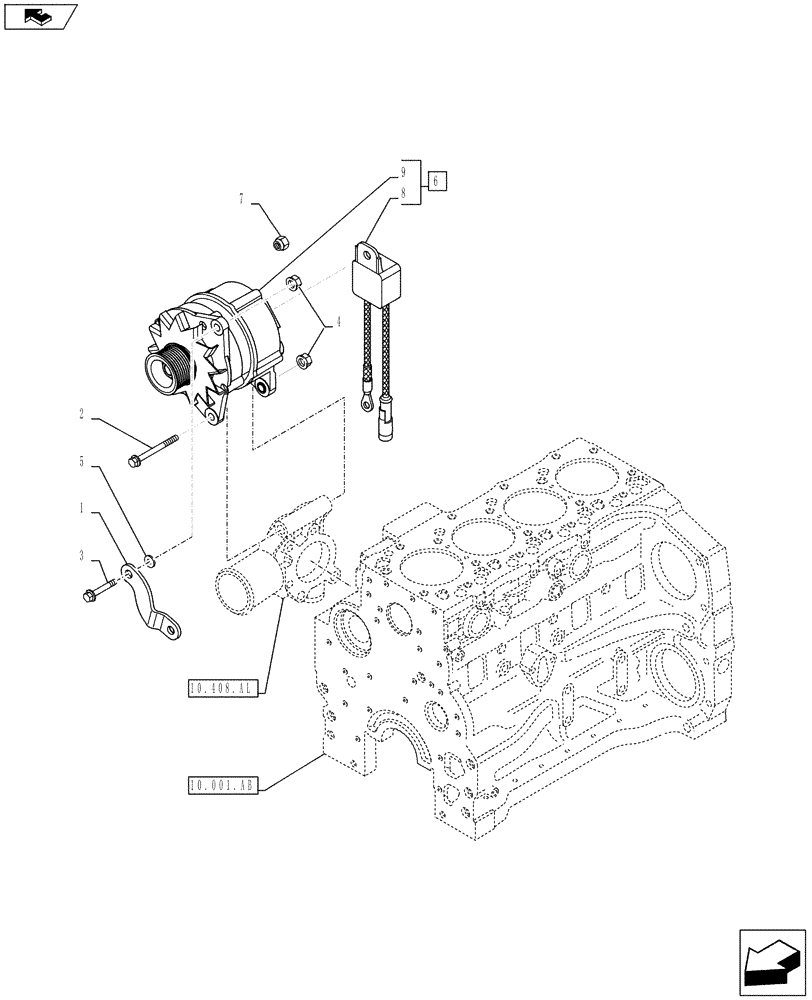

Запчасти Case IH F4CE9487N J603 (55.301.AB) - ALTERNATOR (55) - ELECTRICAL SYSTEMS

1

87718732

SUPPORT

1шт.

2

15972424

SCREW,Hex, M10 x 1.25 x 130mm, Cl 8.8

1шт.

3

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

1шт.

4

12164714

NUT,M10 x 1.25, Cl 8

3шт.

5

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

3шт.

6

87311822

ALTERNATOR,120A, W/ Pulley

ASSY, Incl 8, 9

1шт.

7

5132136

CAP COVER,M8

M8

1шт.

8

87537543

CABLE

1шт.

9

NSS

NOT SOLD SEPARAT

Alternator, Incl in 6

1шт.
