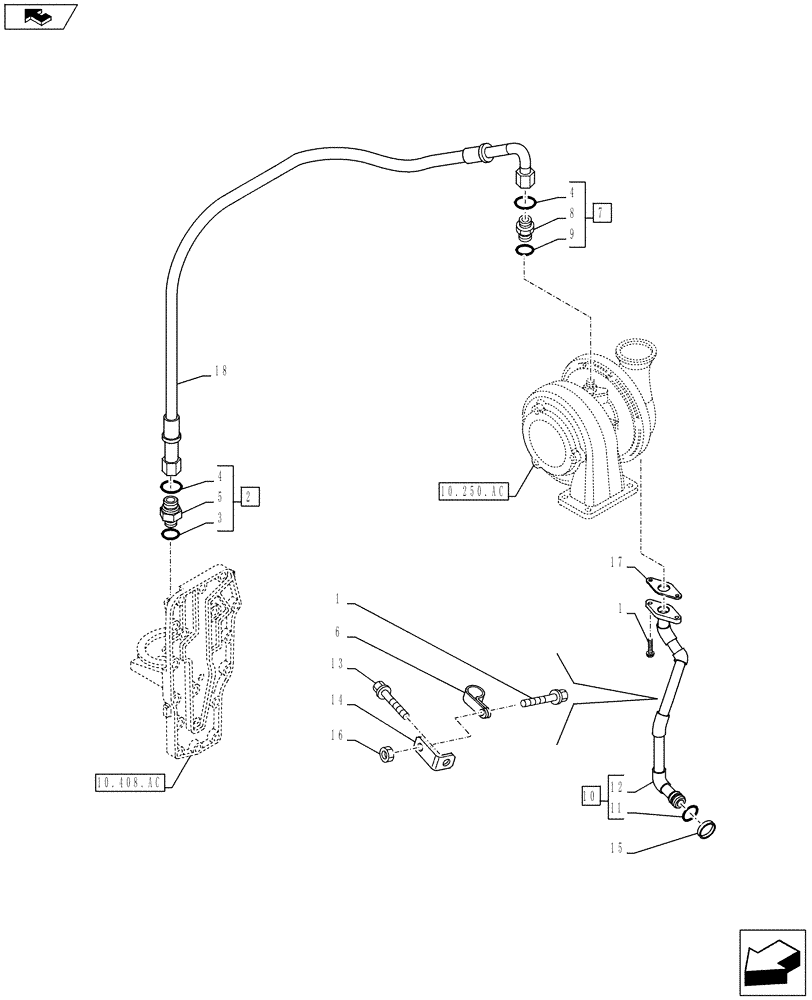

Запчасти Case IH F4CE9487N J603 (10.304.AL) - SUCTION PIPE, ENGINE OIL (10) - ENGINE

1

4895164

SCREW,Hex, Flg Hd, M6 x 16

3шт.

2

4895107

HYD CONNECTOR,11/16"-16 x M12

ASSY, Incl 3 - 5

1шт.

3

4899107

O-RING,1.8mm Thk x 10.52mm ID

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

2шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

1шт.

6

4899519

CLAMP,M16, M6 Bolt

1шт.

7

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

ASSY, Incl 4, 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

9

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

1шт.

10

2830895

TUBE

ASSY, Incl 11, 12

1шт.

11

4899058

O-RING,0.674" ID x 0.88" OD x 0.103"

2шт.

12

NSS

NOT SOLD SEPARAT

Incl in 10

1шт.

13

4893517

SCREW

1шт.

14

2830887

BRACKET

1шт.

15

4895089

PLUG,0.886" L

1шт.

16

4899057

FLANGE NUT,M6

1шт.

17

4899467

GASKET

1шт.

18

4899654

FLEXIBLE HOSE

1шт.

18

2853842

FLEXIBLE HOSE,6.35mm ID x 347mm L

1шт.
