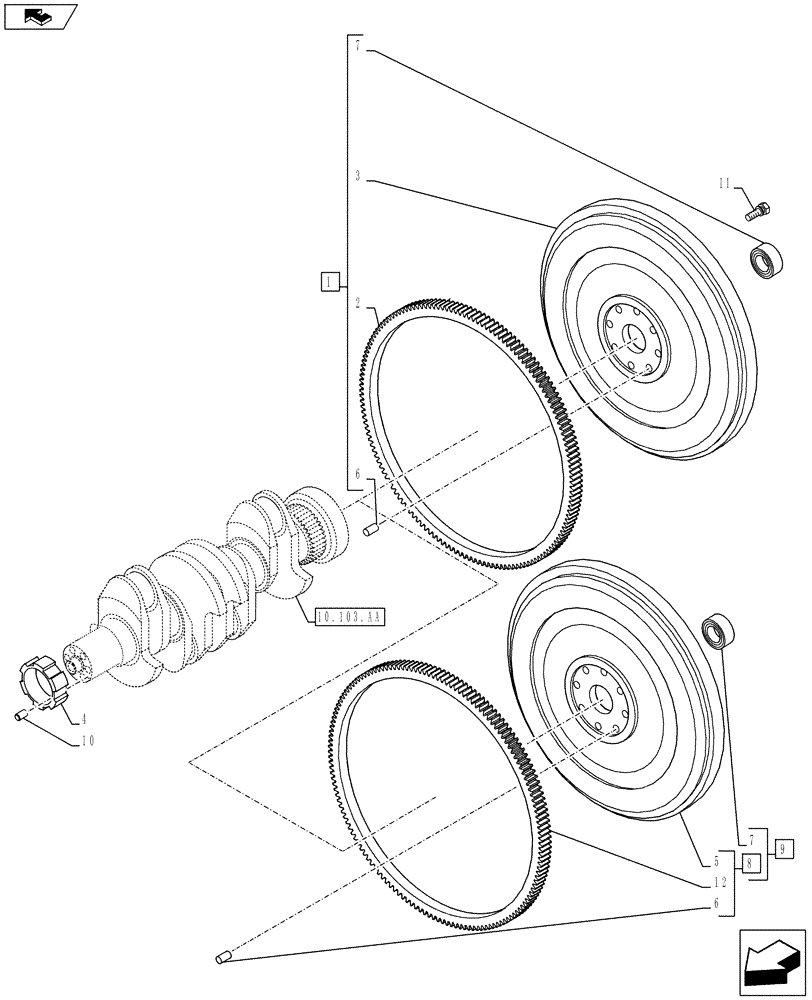

Запчасти Case IH F4CE9487N J603 (10.103.AH) - ENGINE FLYWHEEL (10) - ENGINE

1

47133980

ENGINE FLYWHEEL

ASSY, Incl 2, 3, 6, 7, Serial Range: -C6374

1шт.

2

47133696

RING GEAR,104T

1шт.

3

NSS

NOT SOLD SEPARAT

Flywheel, Incl in 1

1шт.

4

87306803

BALL BEARING,17mm ID x 47mm OD x 14mm W

1шт.

5

NSS

NOT SOLD SEPARAT

Flywheel, Incl in 8

1шт.

6

10839710

DOWEL,M10 x 15.00mm

1шт.

7

84209744

BALL BEARING

1шт.

8

84203014

ENGINE FLYWHEEL

ASSY, Incl 5, 6, Start Serial: D6374

1шт.

9

84274086

ENGINE FLYWHEEL

ASSY, Incl 7, 8

1шт.

10

2852985

DOWEL

1шт.

11

47133720

BOLT,Hex, M12 x 1.25 x 31.5

8шт.

12

NSS

NOT SOLD SEPARAT

Ring gear, Incl in 8

1шт.
