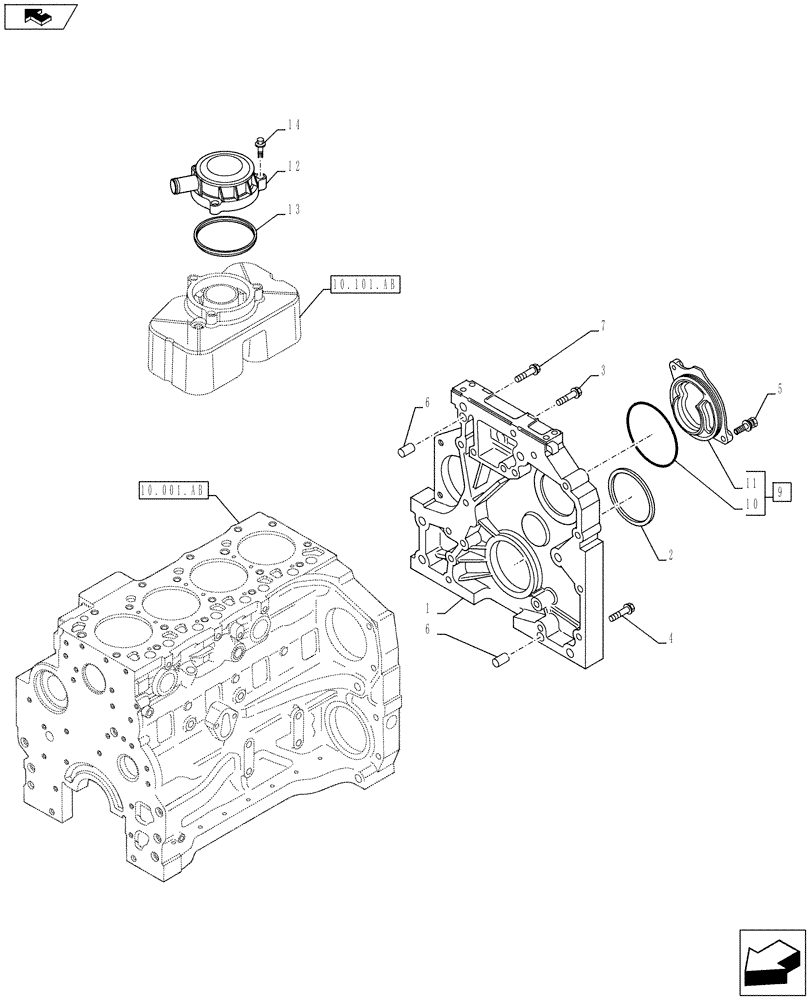

Запчасти Case IH F4CE9487N J603 (10.102.AK) - ENGINE, FRONT ENGINE COVER (10) - ENGINE

1

2855169

HOUSING

1шт.

2

4890833

OIL SEAL,M130 x 155 x 12.5/16

1шт.

3

4899145

BOLT,Flng, M12 x 1.75 x 100mm

2шт.

4

4899385

FLANGE BOLT,Hex, M16 x 1.5 x 80mm, Cl 8.8

1шт.

4

4891250

BOLT,Flng, M12 x 1.75 x 78mm, Cl 10.9

14шт.

5

2852611

SCREW,Shearing

1шт.

5

2852234

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

1шт.

6

4894532

DOWEL,M18 x 10 L

2шт.

7

4899759

FLANGE BOLT,Hex, M16 x 1.5 x 100mm, Cl 8.8

2шт.

9

2853694

COVER ASSY

ASSY, Incl 10, 11

1шт.

10

2853695

O-RING

1шт.

11

NSS

NOT SOLD SEPARAT

Cover, Incl in 9

1шт.

12

2852027

BREATHER

1шт.

13

2852028

GASKET,86mm ID x 94.6mm OD x 8.6mm Thk

1шт.

14

4899110

SCREW,Hex Flg, M6 x 1 x 20

3шт.
