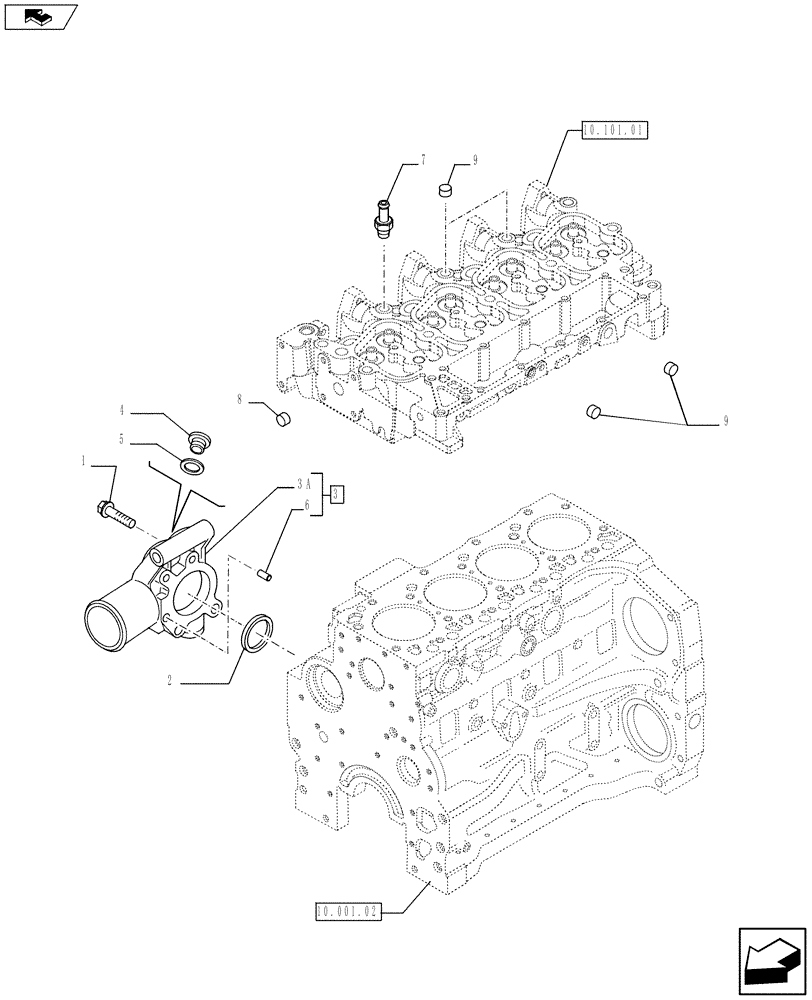

Запчасти Case IH F4CE9484L J603 (10.400.01) - PIPING - ENGINE COOLING SYSTEM (2855043 - 2856050 - 2856180) (10) - ENGINE

1

2830622

SCREW

1шт.

1

4899144

SCREW,Hex Flg, M10 x 1.5 x 50

2шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

4895990

SUPPORT

ASSY Contains Ref.3A, 6

1шт.

3a

NSS

NOT SOLD SEPARAT

1шт.

4

4893206

PLUG,M18 x 1.5

M18 x 1.5

2шт.

5

4893207

SEALING WASHER,15.5mm ID x 26mm OD x 1.5mm Thk

D. 18

2шт.

6

2830894

DOWEL,.25" OD x .625" L

2шт.

7

4896924

HYD CONNECTOR

1шт.

8

4895079

PIPE PLUG,3/4"-14

1шт.

9

4895078

PIPE PLUG,1/2"-14

4шт.
