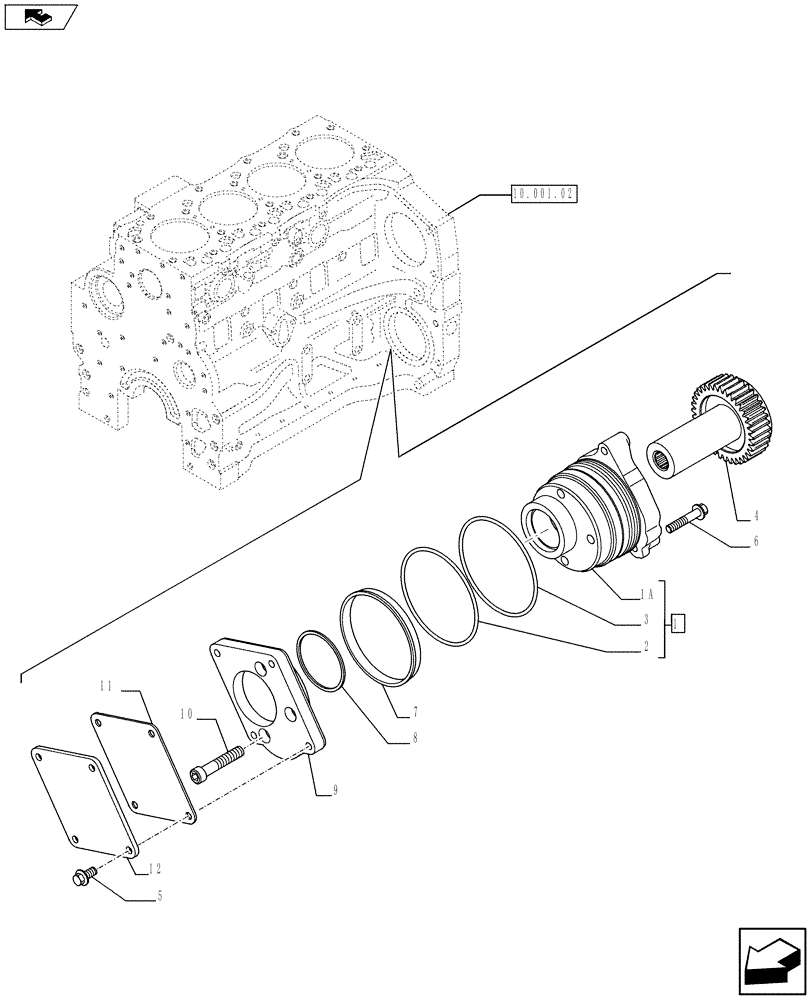

Запчасти Case IH F4CE9484L J603 (10.114.02) - POWER TAKE OFF (2853827) (10) - ENGINE

1

2853828

DRIVING GEAR

ASSY

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

4897110

O-RING,0.139" Thk x 3.859" ID, -241

1шт.

3

2853832

O-RING

1шт.

4

2853833

SHAFT

1шт.

5

4896884

BOLT,Flng, M8 x 1.25 x 16mm, Cl 10.9

4шт.

6

4897348

BOLT,Flng, M8 x 1.25 x 40mm, Cl 10.9

3шт.

7

2853836

SPACER,102.5mm ID x 107.5mm OD x 13mm L

1шт.

8

2853837

O-RING,0.07" Thk x 2.55" ID

1шт.

9

2853838

ADAPTER

1шт.

10

2853839

HEX SOC SCREW

3шт.

11

2853840

GASKET,0.8mm Thk

1шт.

12

2853841

COVER

1шт.
