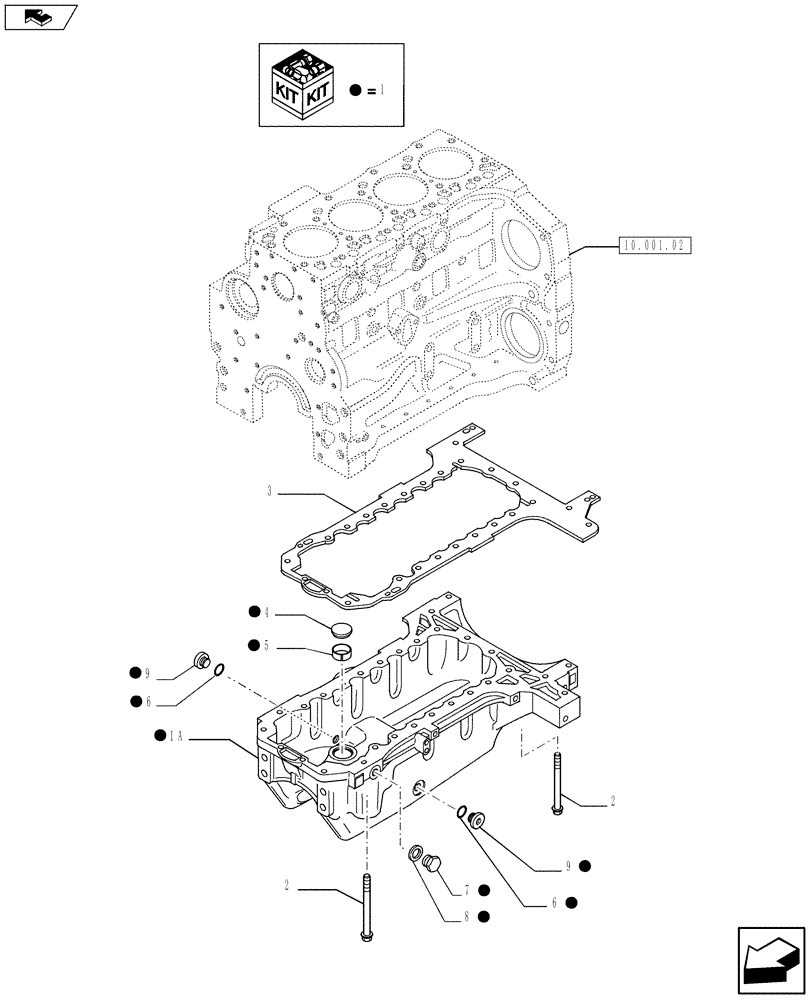

Запчасти Case IH F4CE9484L J603 (10.102.01) - OIL SUMP & RELATED PARTS (504093954) (10) - ENGINE

1

504093953

ENGINE OIL PAN

ASSY

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

2830730

BOLT,Flng, M10 x 1.5 x 70mm

HH, Flange, M10 x 1.5 x 70

16шт.

2

4892915

FLANGE BOLT,Hex, M10 x 1.5 x 40mm

4шт.

2

4895168

BOLT,Flng, M10 x 1.5 x 50mm

7шт.

2

4897905

SCREW

4шт.

3

2830645

OIL PAN GASKET SET

1шт.

4

4895936

PLUG

1шт.

5

4895935

FILTER SCREEN

1шт.

6

2853728

O-RING,M23.47 ID x 2.62 Thk

2шт.

7

2830127

PLUG,M16 x 1.5

1шт.

8

2830128

SEALING WASHER,13.9mm ID x 24mm OD x 1.5mm Thk

1шт.

9

4894139

PLUG,Hex Soc, M22 x 1.5

2шт.
