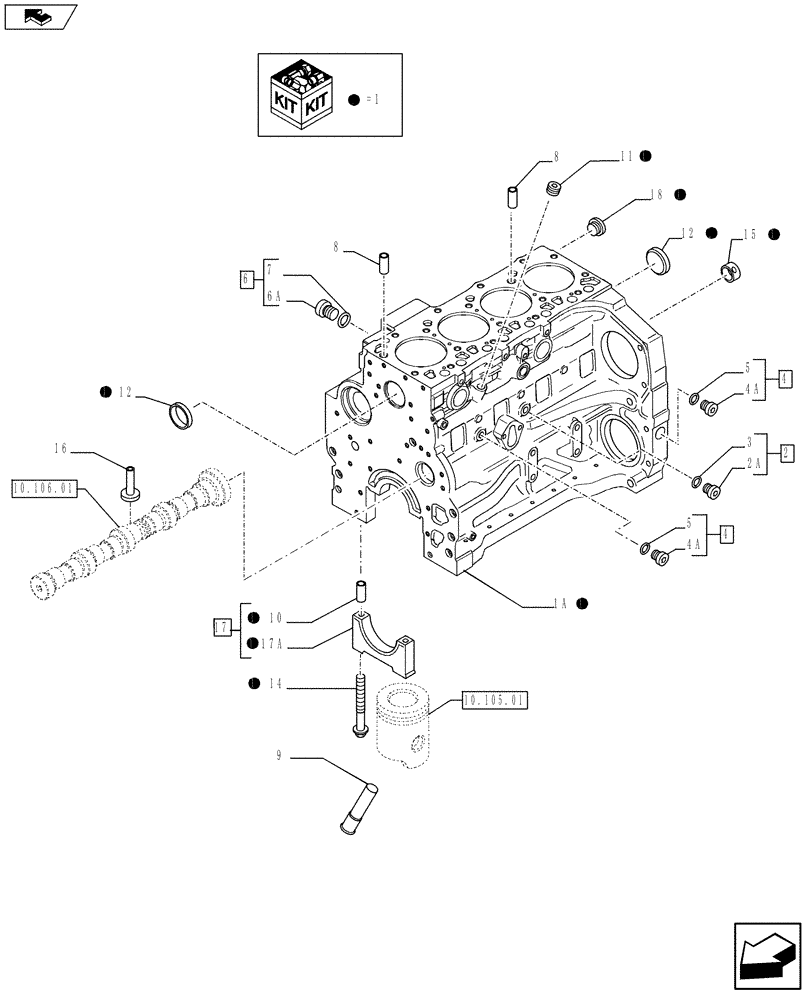

Запчасти Case IH F4CE9484L J602 (10.001.02) - CYLINDER BLOCK & RELATED PARTS (2859415) (10) - ENGINE

1

2859416

CYLINDER BLOCK

ASSY

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

4895623

HEX SOCKET PLUG,M16 x 1.5

ASSY

1шт.

3

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

2a

NSS

NOT SOLD SEPARAT

1шт.

4

4899009

PLUG,M10 x1

ASSY

2шт.

4a

NSS

NOT SOLD SEPARAT

1шт.

5

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

6

4895392

HEX SOCKET PLUG,M18 x 1.5

ASSY

2шт.

6a

NSS

NOT SOLD SEPARAT

1шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

8

4895049

DOWEL,M16.05 x 10

2шт.

9

4896865

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

4шт.

10

4899026

DOWEL,M18 x 10

10шт.

11

4895039

EXPANSION PLUG,M17.73

1шт.

12

4895038

EXPANSION PLUG,M58.06

4шт.

13

4895228

EXPANSION PLUG,35.23mm x 7.94mm

2шт.

14

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

10шт.

15

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

1шт.

16

J931623

TAPPET

8шт.

17

4895921

BEARING ASSY,86.1mm D

1шт.

17

4895919

BEARING ASSY,86.1mm D

4шт.

17a

NSS

NOT SOLD SEPARAT

1шт.

18

2831364

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

1шт.
