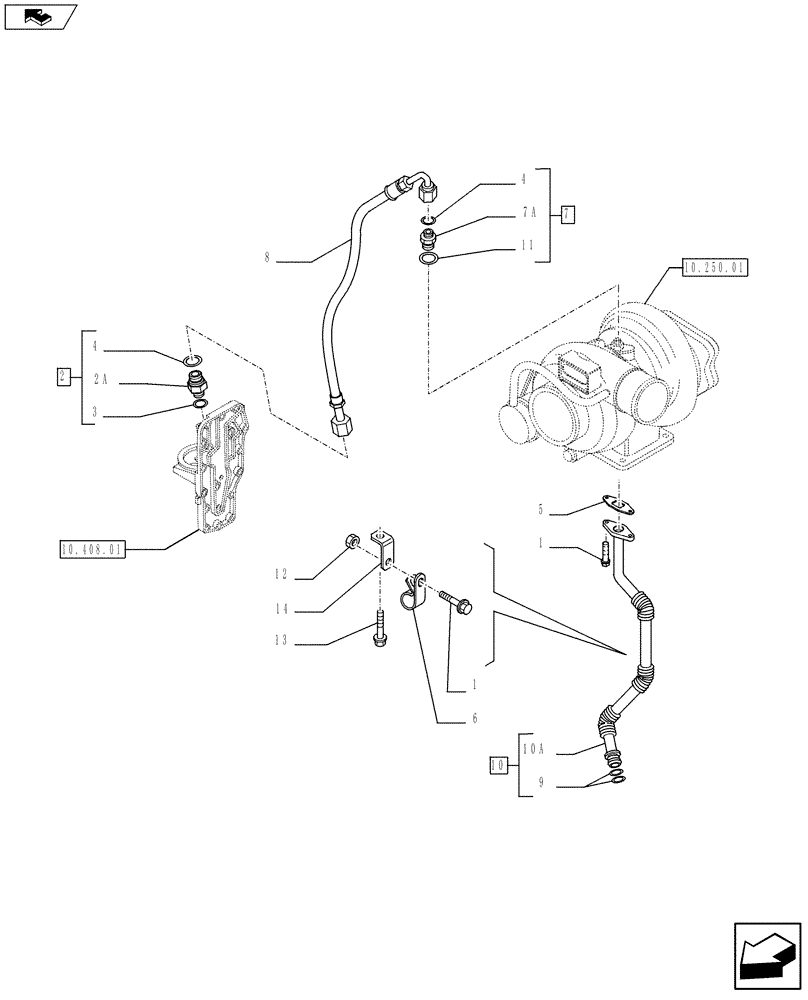

Запчасти Case IH F4CE9484L J602 (10.304.05) - PIPING - ENGINE OIL (2855089) (10) - ENGINE

1

4895164

SCREW,Hex, Flg Hd, M6 x 16

3шт.

2

2857015

HYD CONNECTOR,Hex, M12 x 1.5 x 6.7mm ID x 32mm L

ASSY Contains Ref.2A, 3, 4

1шт.

2a

NSS

NOT SOLD SEPARAT

1шт.

3

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

2шт.

5

4899467

GASKET

1шт.

6

4899519

CLAMP,M16, M6 Bolt

1шт.

7

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

ASSY Contains Ref.4, 7A, 11

1шт.

7a

NSS

NOT SOLD SEPARAT

1шт.

8

2853842

FLEXIBLE HOSE,6.35mm ID x 347mm L

1шт.

9

4899058

O-RING,0.674" ID x 0.88" OD x 0.103"

2шт.

10

2830895

TUBE

ASSY Contains Ref.9, 10A

1шт.

10a

NSS

NOT SOLD SEPARAT

1шт.

11

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

1шт.

12

4899057

FLANGE NUT,M6

1шт.

13

4893517

SCREW

1шт.

14

2830887

BRACKET

1шт.
