(10.304.01[02]) - OIL PUMP - ENGINE (2831055)

Запчасти Case IH F4CE9484L J602 (10.304.01[02]) - OIL PUMP - ENGINE (2831055) (10) - ENGINE

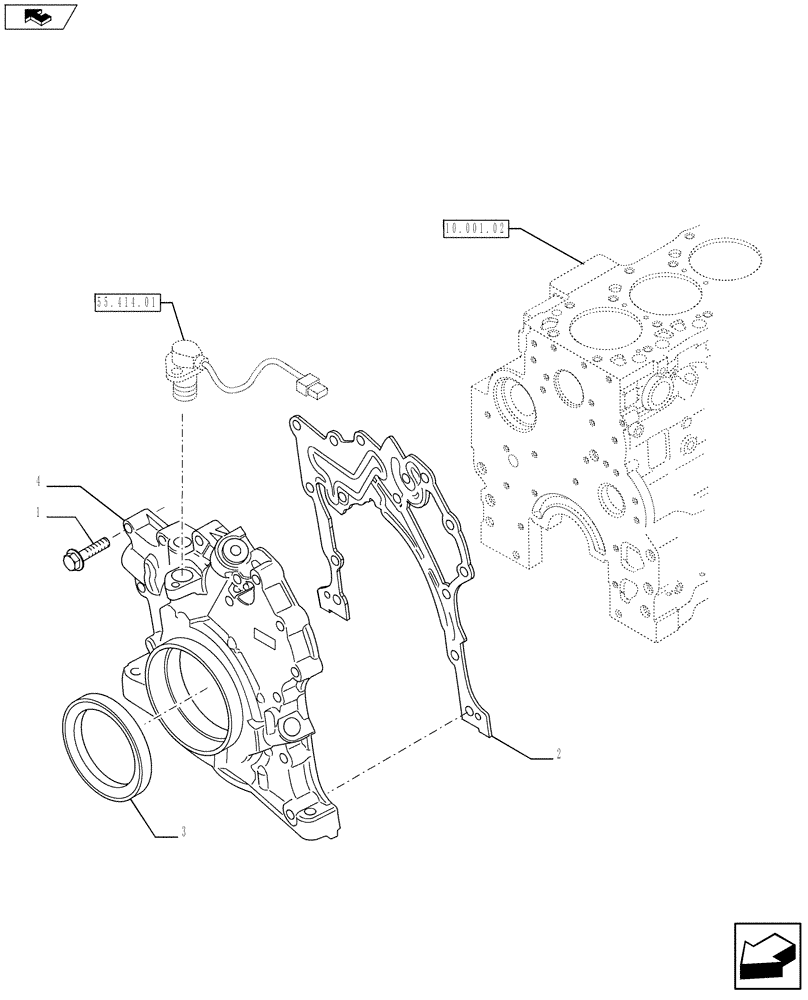

Схема запчастей Case IH F4CE9484L J602 - (10.304.01[02]) - OIL PUMP - ENGINE (2831055) (10) - ENGINE
2
55.414.01
10.001.02
home
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2830913

ENGINE OIL PUMP

1шт.

2830913R

REMAN-ENG OIL PUMP

F4CE9484L*J602, T4060F

1шт.

2830913C

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

2830972

GASKET,2.3mm Thk

1шт.

3

4890832

OIL SEAL,M70 x 100 x 12.5/16

1шт.

4

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

11шт.

4

4899089

SCREW,Hex Flg, M8 x 1.25 x 50

2шт.

4

4899031

BOLT,Flng, M8 x 1.25 x 25mm

2шт.
